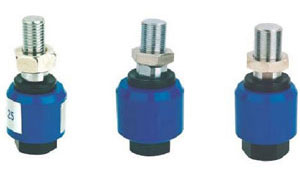

Floating Joint FJ10 Series

Order code
FJ10	-	08
Series code		Port size

Specification
Model	FJ1008	FJ100	FJ1012	FJ1016	FJ1020	FJ1027	FJ1036
Port size	M8×1.25	M10×1.25	M12×1.25	M16×1.5	M20×1.5	M27×2.0	M36×2.0

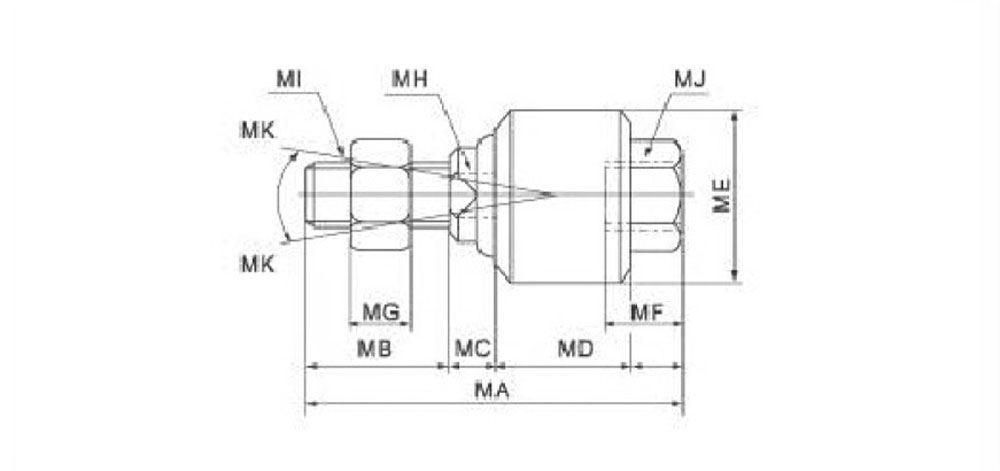

Dimension
Bore size(mm)	MA	MB	MC	MD	ME	MF	MG	MH	M1	MJ	MK
20	51	20	6	17	24	11.5	6	8	M8*1.25	M8*1.25	13^O
25	58	22	7	21	26	11.5	7	10	M10*1.25	M10*1.25	13^O
32	58	22	7	21	26	11.5	7	10	M10*1.25	M10*1.25	12^O
40	58	22	8	21	28	11.5	8	12	M12*1.25	M12*1.25	12^O
50	90	27	10	41	44.5	20	10	17	M16*1.5	M16*1.5	7^O
63	90	27	10	41	44.5	20	10	17	M16*1.5	M16*1.5	7^O
80	102	29	13	46	53	24	13	22	M20*1.5	M20*1.5	10^O
100	102	29	13	46	53	24	13	22	M20*1.5	M20*1.5	10^O
125	147	54	13	64	62	39	14	30	M27*2.0	M27*2.0	9^O
160	251	72	22	115	80	80	18	36	M36*2.0	M36*2.0	4^O
200	251	72	22	115	80	80	18	36	M36*2.0	M36*2.0	4^O
