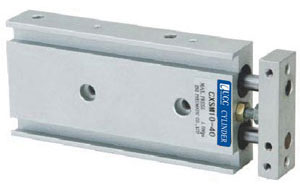

Dual Rod Cylinder CXS Series
|
Order code |
||||
|
CXS |
M |
- |
200×100 |
S |
|
Basic type |
M: slide bearing L: ball bushing bearing |
|
bore×stroke |
Built-in magnets Nil: without S: with |
|
Specification |
||||||
|
Brose size(mm) |
6 |
10 |
16 |
20 |
25 |
32 |
|
Fluid |
Air(filtered through40u filter element) |
|||||
|
Action |
Double acting type |
|||||
|
Max. operating pressure |
0.7Mpa |
|||||
|
Min. operating pressure |
0.15Mpa |
0.1Mpa |
0.05Mpa |
|||
|
Piston speed |
30-300 |
30-800 |
30=700 |
30-600 |
||
|
Ambient & fluid temperature |
-10-60oc(not freezing) |
|||||
|
Cushion |
Rubber cushion on both ends |
|||||
|
Structure |
Double-rod |
|||||
|
Lubrication |
Not required |
|||||
|
Stroke adjustable range |
0 |
|||||
|
Bearing type |
Side bearing/ball bushing bearing |
|||||
|
Non-rotating accuracy |
±0.1" |
|||||
|
Port size |
M5×0.8 |
1/8" |
||||
|
Body material |
Aluminum alloy |
|||||
|

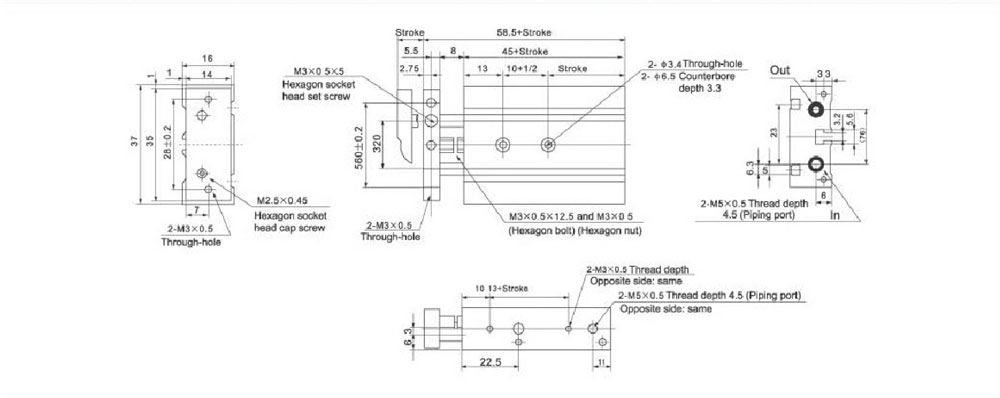

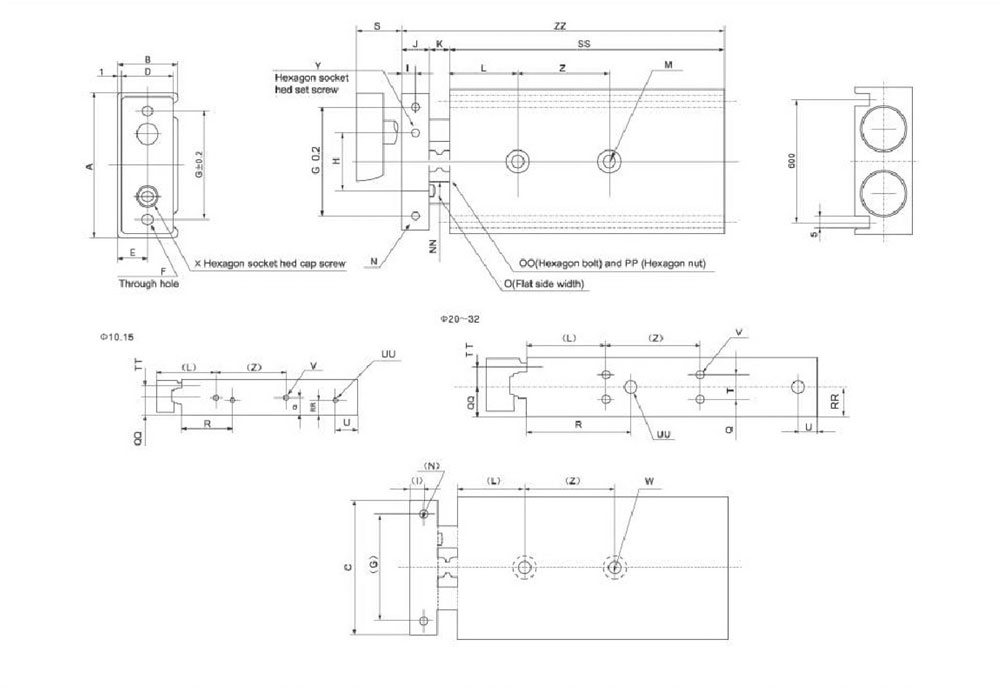

Dimension |
|||||
|
Type |
stroke |
10+1/2Stroke |
13+Stroke |
45+Stroke |
58.5+Stroke |
|
CXS□6-10 |
10 |
15 |
23 |
55 |
68.5 |
|
CXS□6-20 |
20 |
20 |
33 |
65 |
78.5 |
|
CXS□6-30 |
30 |
25 |
43 |
75 |
89.5 |
|
CXS□6-40 |
40 |
30 |
53 |
85 |
98.5 |
|
CXS□6-50 |
50 |
35 |
63 |
95 |
108.5 |
