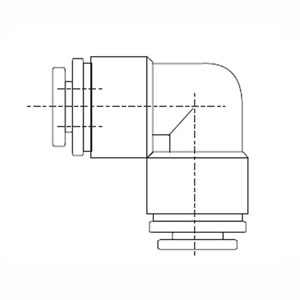

Rotary Joint AMV

Model

AMv-4

AMv-6

AMv-8

AMv-8

AMv-10

AMv-12

AMv-15

AMv-18

AMv-22

Order code

AMX

8

-

20

Series code

Tube size

4

6

8

10

12

Port size

01:1/8"

02:1/4"

03:/3/8"

04:1/2"

Specification
Media		Air
Proof pressure		1.32Mpa(1.35kgf/cm²)
Pressure range	Positive pressure	0-0.9Mpa(0-9.2kgf/cm²)
	Negative pressure	-99.99-0kpa(750-0mmHg)
Ambient &fluid temperature		0-60^oc
Recommended tubes		Urethane tube, nylon tube
Material		Brass
