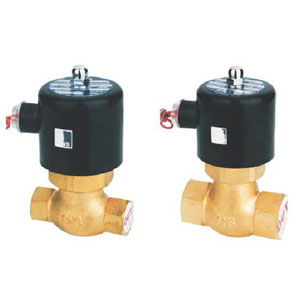

Direct Acting Solenoid Valve 2L

Order code

2L

250

-

20

AC110V

2/2 way

Orifice size

170:17mm

200:17mm

250:25mm

350:35mm

400:40mm

500:50mm

Port size

10:3/8"

15:1/2"

20:3/4"

25:1"

35:1^1/4"

40:^1/2"

50:2"

Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz

Specification
Model		2L170-10	2L170-15	2L200-20	2L250-25	2L350-35	2L400-40	2L500-50
Fluid		Air ,Water, Oil (filtered through 40 filter element)
Action		Direct acting type
Type		Normally closed type
Effective area(mm)		17	17	20	25	35	40	50
CV Value		4.8	4.8	4.8	12	20	20	48
Port size		3/8	1/2	3/4	1	1 1/4	1 1/2	2
Viscosity limit		Under 20CST
Operating pressure		1~15kgf/cm2
Ambient & fluid temperature		-5~85 c
Voltage range		±10%
Weight(Kg)
Main parts material	Body	Brass
	Seal	EPDM

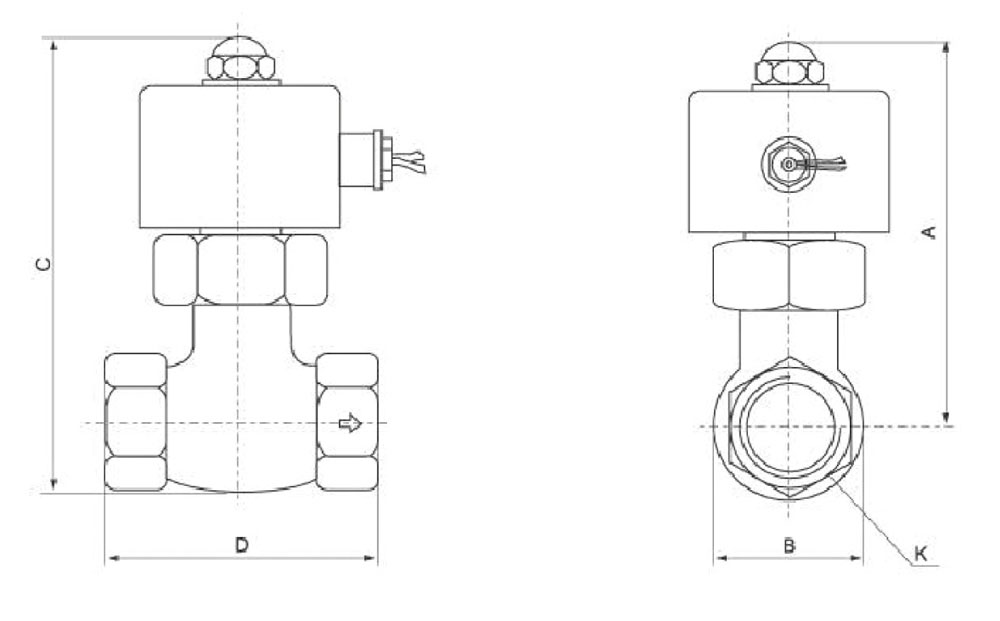

Dimension
Model	A	B	C	D	K
2L170-10	122.4	42	143.4	82	PT3/8"
2L170-15	122.4	42	143.4	82	PT1/2"
2L200-20	122.4	42	143.4	90.5	PT3/4"
2L250-25	130	52	156	111	PT1"
2L350-35	148	74	185	111	PT1^1/4"
2L400-40	147	74	185	111	PT1^1/2""
2L500-50	176	86	223	163	PT2”
