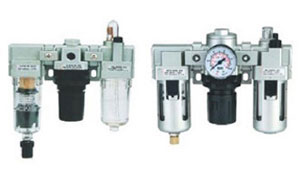

Air Filter Regulator And Lubricator Unit AC Series (3 union)
|
Order code |
||||
|
AC |
2000 |
- |
02 |
D |
|
F.R.L unit |
Body size 1000 2000 2500 3000 4000 5000 |
|
Port size M5:M5 02:1/4 03:3/8 04:1/2 06:3/4 10:1 |
Drain type Nil: Manual drain A: Semi automatic drain D: Automatic drain |
|
Specification |
||||||||||||
|
Model |
AC1000 -M5 AC1000 -M AC1000 -M5D |
AC2000 -02 AC2000 AC2000 -02D |
AC2500 -02 AC2500 AC2500 -02D |
AC3000 -02 AC3000 AC3000 -02D |
AC3000 -03 AC3000 AC3000 -03D |
AC4000 -03 AC4000 AC4000 -03D |
AW4000 -03 AW4000 AW4000 -03D |
AC4000 -04 AC4000 AC4000 -04D |
AC4000 -06 AC4000 AC4000 -06D |
AC4000 -06 AC4000 AC4000 -06D |
AC4000 -10 AC4000 AC4000 -10D |
|
|
Component |
Filter regulator |
AF1000 |
AF2000 |
AF2500 |
AF2500 |
AF3000 |
AF3000 |
AF4000 |
AF4000 |
AF4000 |
AF5000 |
AF5000 |
|
Regulator |
AR1000 |
AR2000 |
AR2500 |
AR2500 |
AR3000 |
AR3000 |
AR4000 |
AR4000 |
AR4000 |
AR5000 |
AR5000 |
|
|
Lubricator |
AL1000 |
AL2000 |
AL2500 |
AL2500 |
AL3000 |
AL3000 |
AL4000 |
AL4000 |
AL4000 |
AL5000 |
AL5000 |
|
|
Port size RC(L/Min) |
M5×0.8 |
1/4" |
1/4" |
3/8" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
3/4" |
1 |
|
|
Pressure gauge port size |
M5×0.8 |
1/8" |
1/8" |
1/8" |
1/8" |
1/8" |
1/4" |
1/4" |
1/4" |
1/4" |
1/4" |
|
|
Flow rate(L/Min) |
90 |
900 |
1500 |
1500 |
2000 |
2000 |
4000 |
4000 |
4500 |
5000 |
5000 |
|
|
Fluid |
Air |
|||||||||||
|
Proof pressure |
1.5MPA(15.3kgf/cm2) |
|||||||||||
|
Max. operating pressure |
1.OMPA(10.2kgf/cm2) |
|||||||||||
|
Ambient & fluid temperature |
5-60oc |
|||||||||||
|
Nominal filtration rate |
4uM |
|||||||||||
|
Recommended lubrication |
turbine NO.1 oil(ISO VG32) |
|||||||||||
|
Adjustable pressure range |
0.05-0.7Mpa 0.05-0.85Mpa |
|||||||||||
|
Bracket(2pcs) |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y |
Y50T |
Y |
Y |
|
|
Pressure gauge |
Y30-10-M5 |
Y |
Y |
|||||||||
|
Weight(kg) |
0.26 |
0.74 |
1.04 |
1.04 |
1.18 |
1.18 |
2.14 |
2.14 |
2.47 |
3.82 |
3.82 |
|
|
Main parts material |
Body |
Aluminum alloy |
||||||||||
|
Bowl |
PC |
|||||||||||
|
Bowl guard |
AC1010-AC2010:without AC3010-AC5010:without (iron) |
|||||||||||
|

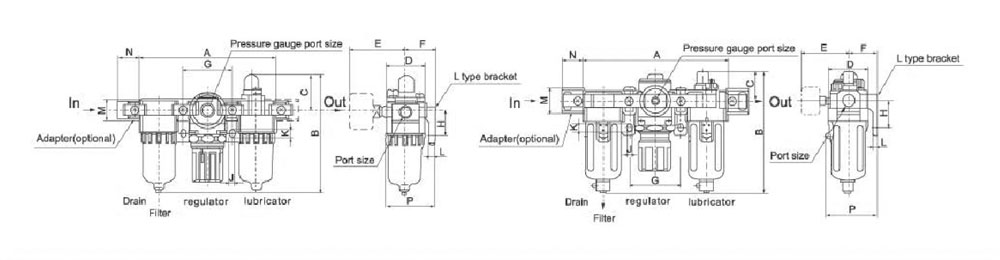

Dimension |
|||||||||||||||
|
Model |
Port size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
P |
|
AC1000 |
M5×0.8 |
91 |
84.5 |
25.5 |
25 |
26 |
25 |
33 |
20 |
4.5 |
7.5 |
5 |
17.5 |
16 |
38.5 |
|
AC2000 |
1/4" |
140 |
125 |
38 |
40 |
56.8 |
40 |
50 |
24 |
5.5 |
8.5 |
5 |
22 |
23 |
50 |
|
AC2500 |
1/4",3/8" |
181 |
156.5 |
38 |
53 |
60.8 |
41 |
64 |
35 |
7 |
11 |
7 |
34.2 |
26 |
70.5 |
|
AC3000 |
1/4",3/8" |
181 |
156.5 |
38 |
53 |
60.8 |
41 |
64 |
35 |
7 |
11 |
7 |
34.2 |
26 |
70.5 |
|
AC4000 |
3/8",1/2" |
238 |
191.5 |
41 |
70 |
65.5 |
50 |
84 |
40 |
9 |
13 |
7 |
42.2 |
33 |
88 |
|
AC4000-06 |
3/4 |
253 |
193 |
40.5 |
70 |
69.5 |
50 |
89 |
40 |
9 |
13 |
7 |
46.2 |
36 |
88 |
|
AC5000 |
3/4,1" |
300 |
271.5 |
48 |
90 |
75.5 |
70 |
105 |
50 |
12 |
16 |
10 |
55.2 |
40 |
115 |
