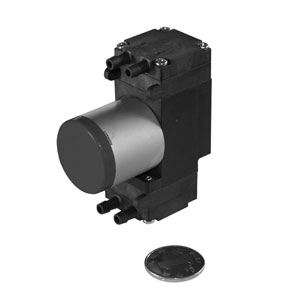

DL7BLDC Micro Diaphragm Gas Pump



Order code

DL

7

BLDC

-

24

-

E

Series code

Flow range

BLDC: Brushless motor



Voltage



E:EPDM



7

DC: Brush motor



6v



N: Neoprene





LC:



12v













24v







Typical applications

Autoclave

Vacuum transfer

Beauty equipment

Bio-Chemical Analyzer

Electrolyte

Patient Monitoring

Chemistry analysis

Blood Pressure Monitor

Air Sampler

Sewage disposal

Gas detection devices

Gas massage products

Lab equipment

Micro plate Washer

Wide-Format Printer

Automatic Tourniquet



Features

BLDC

oil-free

high efficiency

maintenance Free

Low noise level & vibration

long life

low weight

compact size

corrosion resistant

can be mounted in any plane



Performance date

Physical properties

Electrical

Operating environment:

(5-70 oC)

Motor type:

Brushless dual ball bearings

Media:

Most gases and liquids

voltage:

24VDC/12VDC/6VDC

Humidity:

0-95%RH

Pneumatic

Wetted material:

EPDM/NEOPRENE

Max flow:

7LPM

Valves:

EPDM/NEOPRENE

Pressure range:

0-120kpa

Pump head:

PPS

Vacuum range:

-68kpa(series) -60kpa(parallel)

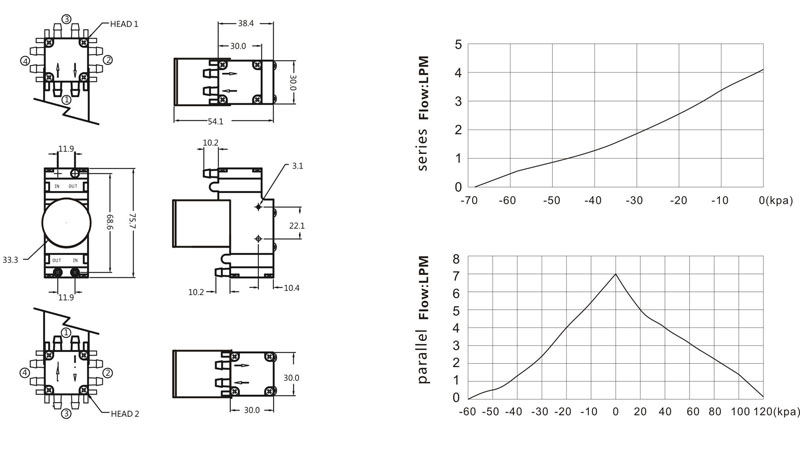

Dimensions

Flow curves

Pump mass-    gms

The under performance graph illustrates the overall performance of the pump handling air at 20m above sea level at 25oC
