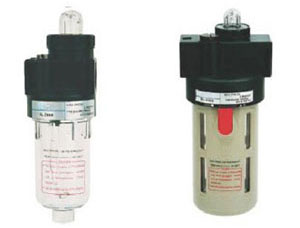

Air Lubricator AB Series
|
Order code |
|
|
|
2000 |
|
lubricator BL: B series |
Port size 1500:1/8" 2000:1/4" 3000:3/8" 4000:1/2" |
|
Specification |
||||||
|
Model |
AL1500 |
AL2000 |
BL2000 |
BL3000 |
BL4000 |
|
|
Port size RC(RT) |
1/8" |
1/4" |
1/4" |
3/8" |
1/2" |
|
|
Fluid |
Air |
|||||
|
Proof pressure |
15.0kgf/cm2 |
|||||
|
Ambient & fluid temperature |
5-60oc |
|||||
|
Recommended lubrication |
Turbine NO.1（ISO Vg32) |
|||||
|
Oil bowl capacity |
25cc |
90cc |
||||
|
Weight(kg) |
0.2 |
0.23 |
||||
|
Main parts material |
Body |
Aluminum alloy |
||||
|
Bowl |
pc |
|||||
|
Bowl guard |
AL 1500-AL2000:without BL2000-BL4000:with（plastic） |
|||||
