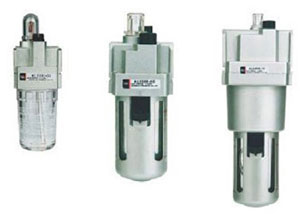

Air Lubricator AL Series
|
Order code |
|||
|
|
2000 |
- |
02 |
|
Lubricator |
Body size 1000 2000 3000 4000 5000 |
|
Port size M5:M5 02:1/4 03:3/8 04:1/2 06:3/4 10:1 |
|
Specification |
||||||||||
|
Model |
AL1000 -M5 |
AL2000 -02 |
AL3000 -02 |
AL3000 -03 |
AL4000 -03 |
AL40000 -04 |
AL4000 -06 |
AL5000 -06 |
AL5000 -10 |
|
|
Min. operating flow rate(l/min) |
4 |
15 |
30 |
40 |
40 |
50 |
50 |
190 |
190 |
|
|
Port size RC(L/Min) |
M5×0.8 |
1/4" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
3/4" |
1" |
|
|
Capacity of bowl(cm2) |
7 |
25 |
50 |
50 |
130 |
130 |
130 |
130 |
130 |
|
|
Flow rate(l/Min) |
95 |
800 |
1700 |
1700 |
5000 |
5000 |
6300 |
7000 |
7000 |
|
|
Fluid |
Air |
|||||||||
|
Proof pressure |
1.5Mpa(15.3kgf/cm2) |
|||||||||
|
Max. operating pressure |
1.OMpa(10.2kgf/cm2) |
|||||||||
|
Ambient & fluid temperature |
5-60oc |
|||||||||
|
Recommended lubricant |
Turbine NO.1 oil(ISO VG32) |
|||||||||
|
Bracket |
|
B |
B |
B |
B |
B |
B |
B |
B |
|
|
Weight(kg) |
0.07 |
0.22 |
0.3 |
0.3 |
0.56 |
0.56 |
0.58 |
1.08 |
1.08 |
|
|
Main parts material |
Body |
Aluminum alloy |
||||||||
|
Bowl |
PC |
|||||||||
|
Bowl guard |
AL1000-AL2000:without AL3000-AL5000:with (Iron) |
|||||||||
|

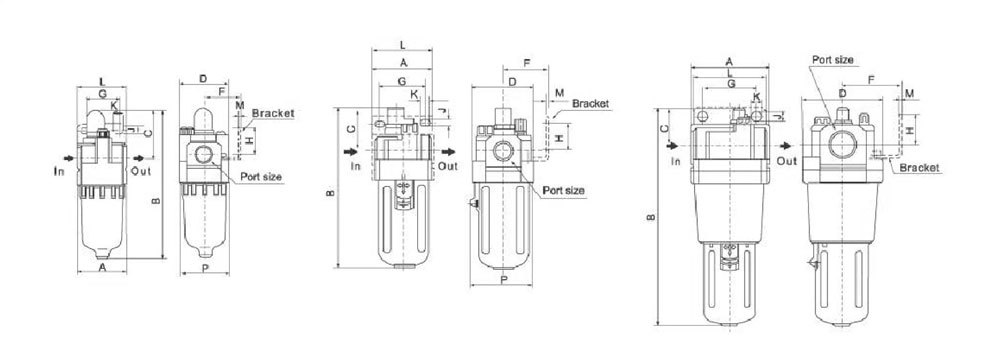

Dimension |
|||||||||||||
|
Model |
Port size |
A |
B |
C |
D |
F |
G |
H |
J |
K |
L |
M |
p |
|
AL1000 |
M5×0.8 |
25 |
81.5 |
25.5 |
25 |
- |
- |
- |
- |
- |
- |
- |
27 |
|
AL2000 |
1/4" |
40 |
122 |
38 |
40 |
30 |
27 |
22 |
5.4 |
8.4 |
40 |
2.3 |
40 |
|
AL3000 |
1/4",3/8" |
53 |
142 |
38 |
53 |
41 |
40 |
23 |
6.5 |
8 |
53 |
2.3 |
56 |
|
AL4000 |
3/8",1/2" |
70 |
177 |
41 |
70 |
50 |
54 |
26 |
8.5 |
10.5 |
70 |
2.3 |
73 |
|
AL4000-06 |
3/4" |
75 |
177 |
39 |
70 |
50 |
54 |
25 |
8.5 |
10.5 |
70 |
2.3 |
73 |
|
AL5000 |
3/4",1" |
90 |
254 |
45 |
90 |
70 |
66 |
35 |
11 |
13 |
90 |
3.2 |
90 |
