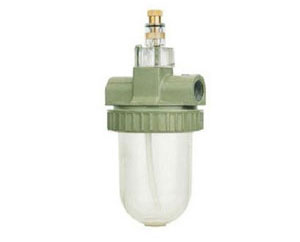

Air Lubricator Q Series
|
Order code |
||
|
QIU |
- |
15 |
|
Filter |
|
Port size 08:1/4" 10:3/8" 15:3/4" 20:1/2" 25:1" 40:11/2" 50:2" |
|
Specification |
||||||||
|
Model |
QIU-08 |
QIU -10 |
QIU -15 |
QIU -20 |
QIU -25 |
QIU -40 |
QIU -50 |
|
|
Port size RC(L/Min) |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
11/2" |
2" |
|
|
Fluid |
Air |
|||||||
|
Proof pressure |
1.5MPA |
|||||||
|
Ambient & fluid temperature |
5-60oc |
|||||||
|
Recommended lubrication |
Turbine No.1 oil(ISOVG32) |
|||||||
|
Drain bowl capacity |
|
|
|
|
|
|
|
|
|
Weight(kg) |
|
|
|
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
||||||
|
Bowl |
pc |
|||||||
|

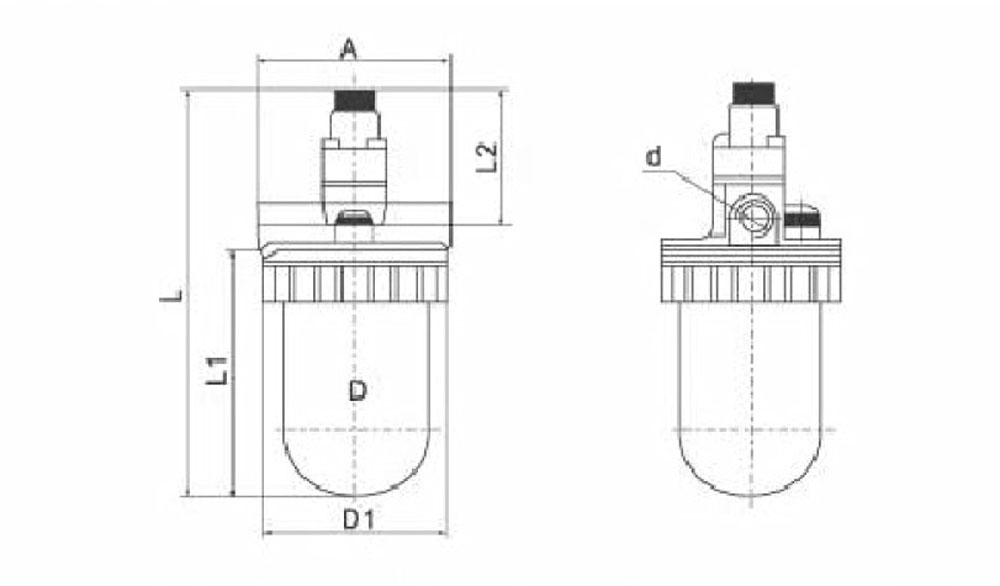

Dimension |
||||||||
|
Model |
Port size |
A |
D |
D1 |
d |
L0 |
L1 |
L |
|
QIU-8 |
1/4" |
90 |
Ф70 |
Ф88 |
Ф13.5 |
14 |
69 |
200 |
|
QIU-10 |
3/8" |
90 |
Ф70 |
Ф88 |
Ф13.5 |
14 |
69 |
200 |
|
QIU-15 |
1/2" |
90 |
Ф70 |
Ф88 |
Ф13.5 |
14 |
69 |
200 |
|
QIU-20 |
3/4" |
115 |
Ф90 |
Ф110 |
Ф21 |
21 |
74 |
250 |
|
QIU-25 |
1" |
115 |
Ф90 |
Ф110 |
Ф21 |
21 |
74 |
250 |
|
QIU-40 |
11/2" |
115 |
Ф90 |
Ф110 |
Ф32 |
32 |
105 |
205 |
