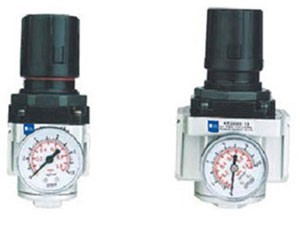

Air Regulator AR Series
|
Order code |
|||
|
AR |
2000 |
- |
02 |
|
F.R.L unit |
Body size 1000 2000 3000 4000 5000 |
|
Port size M5:M5 02:1/4 03:3/8 04:1/2 06:3/4 10:1 |
|
Specification |
|||||||||
|
Model |
AR1000 -M5 |
AR2000 -02 |
AR3000 -02 |
AR3000 -03 |
AR4000 -03 |
AR4000 -04 |
AR4000 -06 |
AR5000 -06 |
AR5000 -10 |
|
Prot size RC(PT) |
M5×0.8 |
1/4" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
3/4" |
1" |
|
Flow rate(L/Min) |
100 |
550 |
2500 |
2500 |
6000 |
6000 |
6000 |
8000 |
8000 |
|
Fluid |
Air |
||||||||
|
Proof pressure |
1.5kgf(15.3kgf/cm2) |
||||||||
|
Max. operating pressure |
1.0kgf(10.2kgf/cm2) |
||||||||
|
Ambient & fluid temperature |
5-60oc |
||||||||
|
Adjustable pressure range |
0.05-0.7Mpa |
0.05-0.85Mpa |
|||||||
|
Bracket |
B120 |
B220 |
B320 |
B320 |
B420 |
B420 |
B420 |
B640 |
B640 |
|
Pressure gauge |
Y30-10-M5 |
Y |
Y |
||||||
|
Weight(kg) |
0.08 |
0.27 |
0.41 |
0.41 |
0.85 |
0.84 |
0.94 |
1.19 |
1.19 |
|
Body material |
Aluminum alloy |
||||||||
|

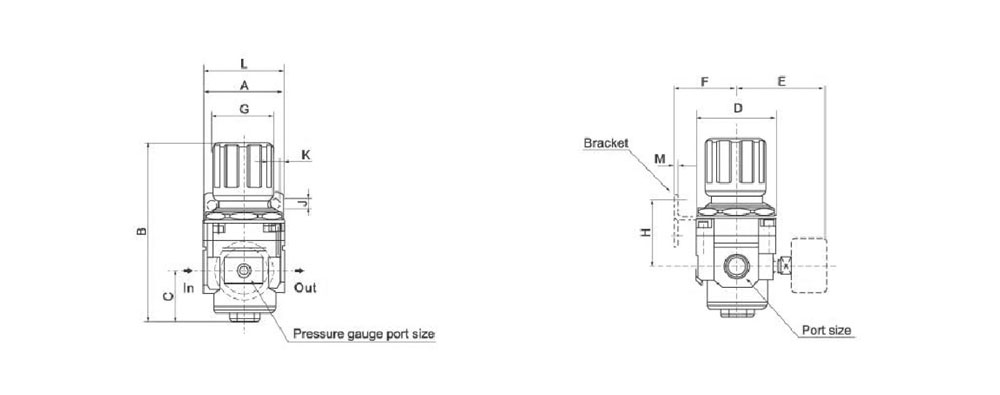

Dimension |
||||||||||||||
|
Model |
Port size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
P |
|
AR1000 |
M5×0.8 |
30 |
61.5 |
11 |
25 |
26 |
25 |
28 |
30 |
4.5 |
6.5 |
40 |
2 |
20.5 |
|
AR2000 |
1/4" |
40 |
95 |
17 |
40 |
56.8 |
40 |
34 |
45 |
5.4 |
15.4 |
55 |
2.3 |
33.5 |
|
AR2500 |
1/4",3/8" |
53 |
102.5 |
25 |
53 |
60.8 |
41 |
34 |
44 |
5.4 |
15.4 |
55 |
2.3 |
33.5 |
|
AR3000 |
1/4",3/8" |
53 |
127.5 |
35 |
53 |
60.8 |
41 |
40 |
46 |
6.5 |
8 |
53 |
2.3 |
42.5 |
|
AR4000 |
3/8",1/2" |
70 |
149.5 |
37.5 |
70 |
65.5 |
50 |
54 |
54 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
|
AR4000-06 |
3/4 |
75 |
154.5 |
40.5 |
70 |
69.5 |
50 |
66 |
56 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
|
AR5000 |
3/4,1" |
95 |
168 |
48 |
90 |
75.5 |
70 |
65.8 |
65.8 |
11 |
13 |
90 |
3.2 |
52.5 |
