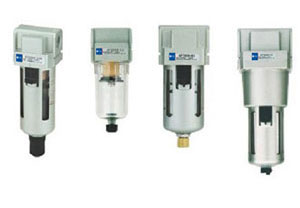

Compressed Air Filter AF Series
|
Order code |
||||
|
AF |
2000 |
- |
02 |
D |
|
Filter |
Body size 1000 2000 3000 4000 5000 |
|
Port size M5:M5 02:1/4 03:3/8 04:1/2 06:3/4 10:1 |
Drain type Nil: Manual drain A: Semi automatic drain D: Automatic drain |
|
Specification |
||||||||||
|
Model |
AF1000 -M5 AF1000 -M AF1000 -M5D |
AF2000 -02 AF2000 AF2000 -02D |
AF3000 -02 AF3000 AF3000 -02D |
AF3000 -03 AF3000 AF3000 -03D |
AF4000 -03 AF4000 AF4000 -03D |
AF4000 -04 AF4000 AF4000 -04D |
AF4000 -06 AF4000 AF4000 -06D |
AF5000 -06 AF5000 AF5000 -06D |
AF5000 -10 AF5000 AF5000 -10D |
|
|
Port size RC(L/Min) |
M5×0.8 |
1/4" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
3/4" |
1 |
|
|
Capacity of bowl(cm2) |
4 |
15 |
20 |
20 |
45 |
45 |
45 |
130 |
130 |
|
|
Flow rate(l/Min) |
110 |
750 |
1500 |
1500 |
4000 |
4000 |
6000 |
7000 |
7000 |
|
|
Fluid |
Air |
|||||||||
|
Proof pressure |
1.5MPA(15.3kgf/cm2) |
|||||||||
|
Max. operating pressure |
1.0MPA(10.2kgf/cm2) |
|||||||||
|
Ambient & fluid temperature |
5-50oc |
|||||||||
|
Nominal filtration rate |
5uM |
|||||||||
|
Bowl material |
Polyethylene |
|||||||||
|
Bracket |
|
B |
B |
B |
B |
B |
B |
B |
B |
|
|
Weight(kg) |
0.07 |
0.19 |
0.29 |
0.29 |
0.55 |
0.55 |
0.58 |
1.08 |
1.08 |
|
|
Main parts material |
Body |
Aluminum alloy |
||||||||
|
Bowl |
PC |
|||||||||
|
Bowl guard |
AF1000-AF2000:without AF3000-AF5000:without (Iron) |
|||||||||
|

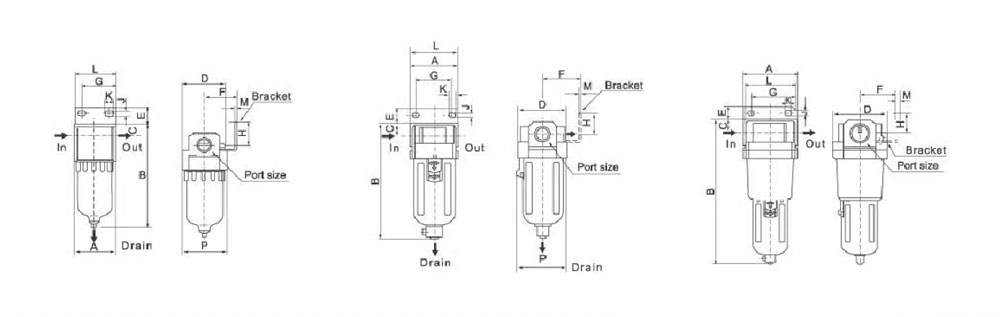

Dimension |
||||||||||||||
|
Model |
Port size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
P |
|
Af1000 |
M5*0.8 |
25 |
66 |
7 |
25 |
- |
- |
- |
- |
- |
- |
- |
- |
26.5 |
|
Af2000 |
1/4" |
40 |
97.5 |
11 |
40 |
17 |
30 |
27 |
22 |
22 |
8.4 |
40 |
2.3 |
40 |
|
Af3000 |
1/4"3/8" |
53 |
132.5 |
14 |
53 |
16 |
41 |
40 |
23 |
23 |
8 |
53 |
2.3 |
56 |
|
Af4000 |
3/8"1/2" |
70 |
168.5 |
18 |
70 |
17 |
50 |
54 |
26 |
26 |
10.5 |
70 |
2.3 |
73 |
|
Af4000_06 |
3/4" |
75 |
172.5 |
20 |
70 |
14 |
50 |
54 |
25 |
25 |
10.5 |
70 |
2.3 |
73 |
|
Af5000 |
3/4"1" |
90 |
247.5 |
24 |
90 |
23 |
70 |
66 |
35 |
35 |
13 |
90 |
3.2 |
90 |
