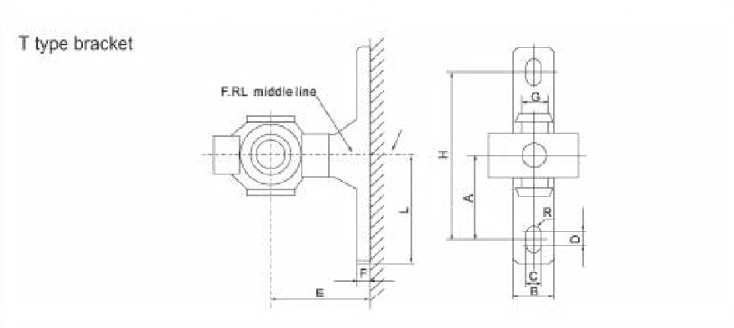

Bracket Applied to AC Series
|
Dimension |
|||||||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
R |
L |
Applicable model |
Material |
|
Y |
20 |
12 |
4.5 |
3 |
25 |
5 |
8 |
2.25 |
27 |
AC1000 |
Zinc alloy |
|
Y |
24 |
15 |
5.5 |
3 |
30 |
5 |
10 |
2.75 |
33 |
AC2000 |
|
|
Y |
35 |
16 |
7 |
4 |
41 |
7 |
11 |
3.5 |
45 |
AC |
|
|
Y |
40 |
22 |
9 |
4 |
50 |
7 |
14 |
4.5 |
50 |
AC4000 |
|
|
Y |
40 |
22 |
9 |
4 |
50 |
7 |
14 |
4.5 |
50 |
AC4000-06 |
|
|
Y |
50 |
24 |
12 |
4 |
70 |
10 |
15 |
6 |
63.5 |
AC5000 |
|
|
Dimension |
||||||||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
R |
L |
Applicable model |
Material |
|
Y10T |
20 |
12 |
4.5 |
3 |
25 |
5 |
8 |
40 |
2.25 |
27 |
AC1010 |
Zinc alloy |
|
Y20T |
24 |
15 |
5.5 |
3 |
30 |
5 |
10 |
48 |
2.75 |
33 |
AC2010 |
|
|
Y30T |
35 |
16 |
7 |
4 |
41 |
7 |
11 |
70 |
3.5 |
45 |
AC3010 |
|
|
Y40T |
40 |
22 |
9 |
4 |
50 |
7 |
14 |
80 |
4.5 |
50 |
AC4010 |
|
|
Y50T |
40 |
22 |
9 |
4 |
50 |
7 |
14 |
80 |
4.5 |
50 |
AC4010-06 |
|
|
Y60T |
50 |
24 |
12 |
4 |
70 |
10 |
15 |
100 |
6 |
63.5 |
AC5010 |
|
