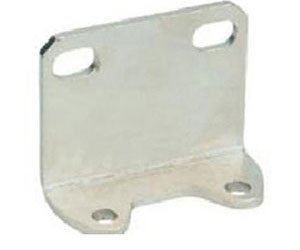

Bracket Applied to AF & AL Series
|

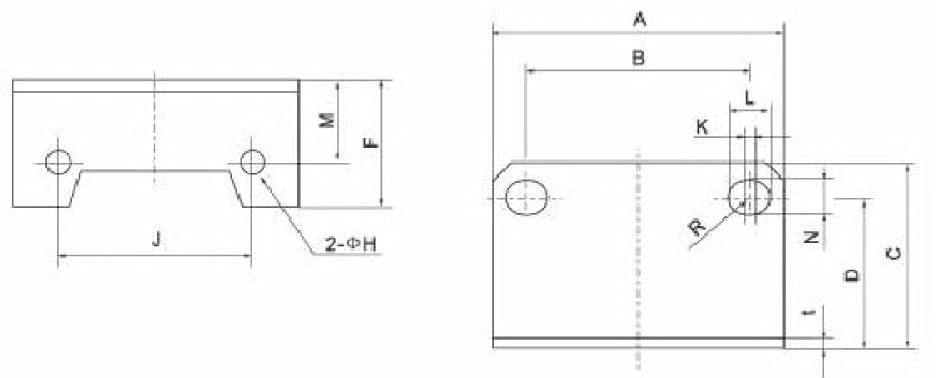

Dimension |
||||||||||||||||
|
Model |
A |
B |
D |
D |
F |
H |
J |
K |
L |
M |
N |
R |
T |
Screw |
Applicable model |
Material |
|
B |
40 |
27 |
33 |
27 |
18 |
45 |
26 |
3 |
8.4 |
14 |
5.4 |
2.7 |
2.3 |
M4×81(Cross head) |
AF2000, AL2000 |
Iron |
|
B |
50 |
40 |
49 |
32 |
22.5 |
45 |
35 |
1.5 |
8 |
19 |
6.5 |
3.25 |
2.3 |
M4×81(inside hexagon) |
AF3000, AL3000 |
|
|
B |
70 |
54 |
47 |
38 |
31.5 |
55 |
47 |
2 |
10.5 |
20 |
8.5 |
4.25 |
2.3 |
M5×101(inside hexagon) |
AF4000, AL4000 |
|
|
B |
70 |
54 |
47 |
38 |
27.5 |
55 |
47 |
2 |
10.5 |
20 |
8.5 |
4.25 |
2.3 |
M5×101(inside hexagon) |
AF4000-06, AL4000-06 |
|
|
B |
90 |
66 |
64 |
62 |
43 |
65 |
65 |
2 |
13 |
30 |
11 |
5.5 |
3.2 |
M6×101(inside hexagon) |
AF5000, AR5000 |
|
