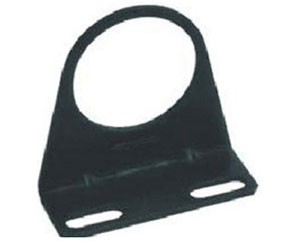

Bracket Applied to AR & AW Series
|

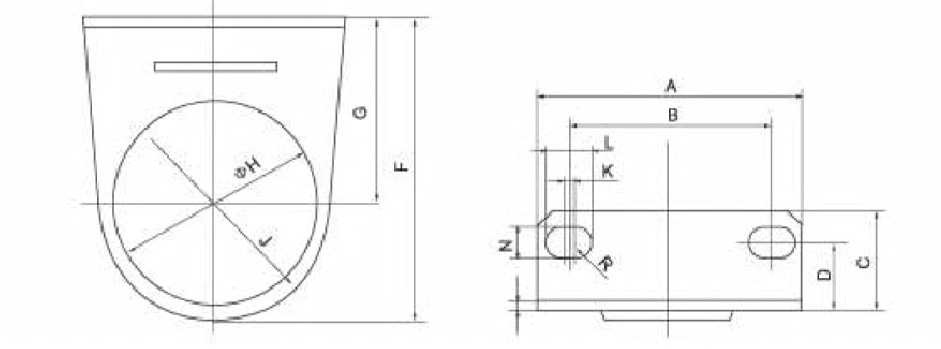

Dimension |
||||||||||||||
|
Model |
A |
B |
C |
D |
F |
G |
J |
K |
L |
N |
R |
T |
Applicable model |
Material |
|
B120 |
40 |
28 |
17 |
11 |
37.8 |
25 |
12.3 |
2 |
6.5 |
4.5 |
2.25 |
2 |
AR1000,AW1000 |
Iron |
|
B220 |
55 |
34 |
25 |
19 |
50 |
30 |
20 |
10 |
15.4 |
5.4 |
2.7 |
2.3 |
AR2000/2500,AW200 |
|
|
B320 |
33 |
40 |
21 |
13.5 |
41 |
41 |
25 |
1.5 |
8 |
6.5 |
3.25 |
2.3 |
AR200/2500,AW2000 |
|
|
B420 |
70 |
54 |
27 |
18 |
50 |
50 |
30 |
2 |
10.5 |
8.5 |
4.25 |
2.3 |
AR4000/4000-0.6,AW4000/4000-06 |
|
