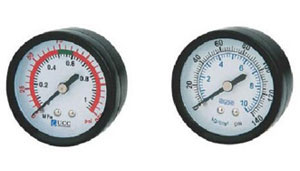

Pressure Gauge

Specification

Model

Y30-10

-M5

Y40-4

-1/8

Y40-6

-1/8

Y40-10

-1/8

Y50-4

-1/8

Y50-6

-1/8

Y50-10

-1/8

Y50-6

-1/4

Y50-10

-1/4

PortsizeRC(PT)

M5

1/8"

1/8"

1/8"

1/8"

1/8"

1/8"

1/4"

1/4"

Max.

pressure

1.0Mpa

(10kgf/cm²)

0.4Mpa

(4kgf/cm²)

0.6Mpa

(6kgf/cm²)

1.0Mpa

(10kgf/cm²)

0.4Mpa

(4kgf/cm²)

0.6Mpa

(6kgf/cm²)

1.0Mpa

(10kgf/cm²)

0.6Mpa

(6kgf/cm²)

1.0Mpa

(10kgf/cm²)

Gauge panel

dia. (mm)

30

40

50

Applicable model

AW1000

AR1000

AR2000/2500/3000  AW2000/3000

AFR15000/2000

AR1500/2000

SFR200/300/400

QTY08/10/15/

20/25

AR4000/5000 AW4000/5000

BR2000/3000/4000

BFR2000/4000 QTY20/25/40/50
