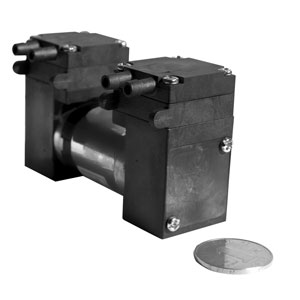

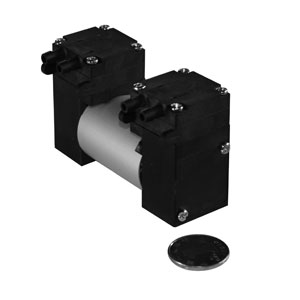

DP9DC Small Diaphragm Gas Pump
Order code |
||||||
DP |
9 |
DC |
- |
24 |
- |
E |
Series code |
Flow range |
BLDC: Brushless motor |
|
Voltage |
|
E:EPDM |
|
9 |
DC: Brush motor |
|
6v |
|
N: Neoprene |
|
|
LC: |
|
12v |
|
|
|
|
|
|
24v |
|
|
Typical applications |
|||
Autoclave |
Vacuum transfer |
Beauty equipment |
Bio-Chemical Analyzer |
Electrolyte
|
Patient Monitoring |
Chemistry analysis |
Blood Pressure Monitor |
Air Sampler |
Sewage disposal |
Gas detection devices |
Gas massage products |
Lab equipment |
Micro plate Washer |
Wide-Format Printer |
Automatic Tourniquet |
Features |
||||
BLDC |
oil-free |
high efficiency |
maintenance Free |
Low noise level & vibration |
long life |
low weight |
compact size |
corrosion resistant |
can be mounted in any plane |
Performance date |
|||
Physical properties |
Electrical |
||
Operating environment: |
(5-70 oC) |
Motor type: |
Brushless dual ball bearings |
Media: |
Most gases and liquids |
voltage: |
24VDC/12VDC/6VDC |
Humidity: |
0-95%RH |
Pneumatic |
|
Wetted material: |
EPDM/NEOPRENE |
Max flow: |
5LPM(series) 9LPM(parallel) |
Valves: |
EPDM/NEOPRENE |
Pressure range: |
0-140kpa |
Pump head: |
PPS |
Vacuum range: |
-78kpa(series) -70kpa(parallel) |

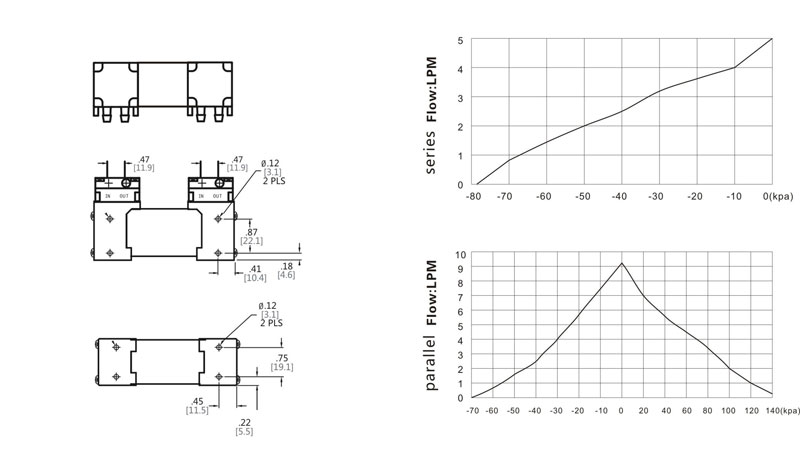

Dimensions |
Flow curves |
Pump mass- gms |
The under performance graph illustrates the overall performance of the pump handling air at |
