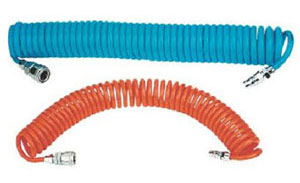

Coil Tube CLW Series
|
Order code |
|||||
|
CLW |
08 |
05 |
- |
9 |
RED |
|
Series code |
Tube O.D. 4 5 6 8 8 10 10 12 12 16 |
Tube I.D. 2.5 3 4 5 6 6.5 8 8 10 13 |
|
Length |
Color Red white Blue black |
|
Specification |
|
|
Fluid |
Air, water, no corrosive oil |
|
Operating pressure |
8~10kgf/cm2 |
|
Ambient& fluid temperature |
-20-60oc |
|

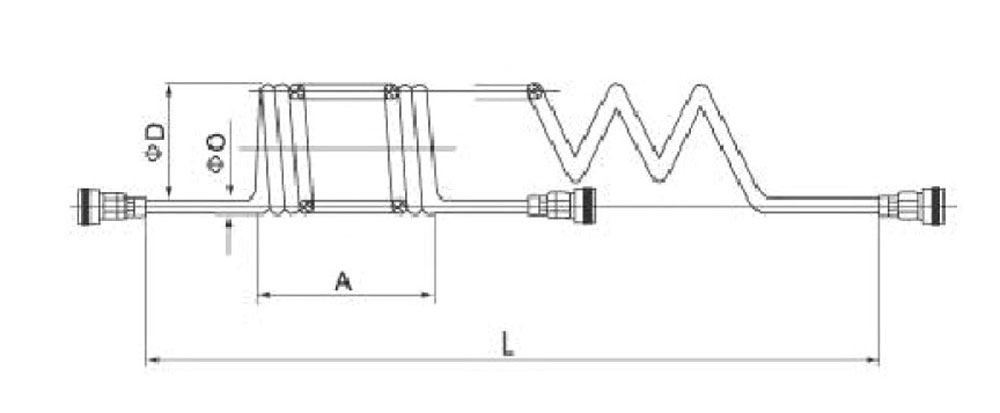

Dimension |
|||
|
model |
L(mm) |
A(mm) |
D(mm) |
|
CLW-0640 |
3 |
3 |
35 |
|
6 |
6 |
35 |
|
|
7.5 |
7.5 |
43 |
|
|
9 |
9 |
43 |
|
|
CLW-0850 |
3 |
180 |
46 |
|
6 |
330 |
46 |
|
|
7.5 |
400 |
54 |
|
|
9 |
400 |
54 |
|
|
12 |
560 |
60 |
|
|
15 |
660 |
60 |
|
|
20 |
765 |
72 |
|
|
CLW-1065 |
3 |
108 |
66 |
|
6 |
400 |
66 |
|
|
7.5 |
560 |
64 |
|
|
9 |
420 |
64 |
|
|
12 |
660 |
65 |
|
|
15 |
780 |
80 |
|
|
CLW-1280 |
3 |
108 |
82 |
|
6 |
360 |
82 |
|
|
7.5 |
460 |
80 |
|
|
9 |
530 |
82 |
|
|
12 |
700 |
82 |
|
|
15 |
870 |
82 |
|
