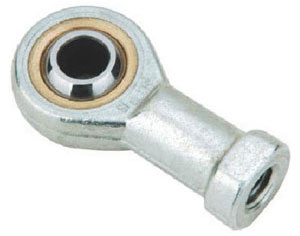

Piston Rod Ball Joint FJ11 Series

Order code
FJ11	-	08
Series code		Port size

Specification
Model	FJ1108	FJ110	FJ1112	FJ1116	FJ1120	FJ1127	FJ1136
Port size	M8×1.25	M10×1.25	M12×1.25	M16×1.5	M20×1.5	M27×2.0	M36×2.0

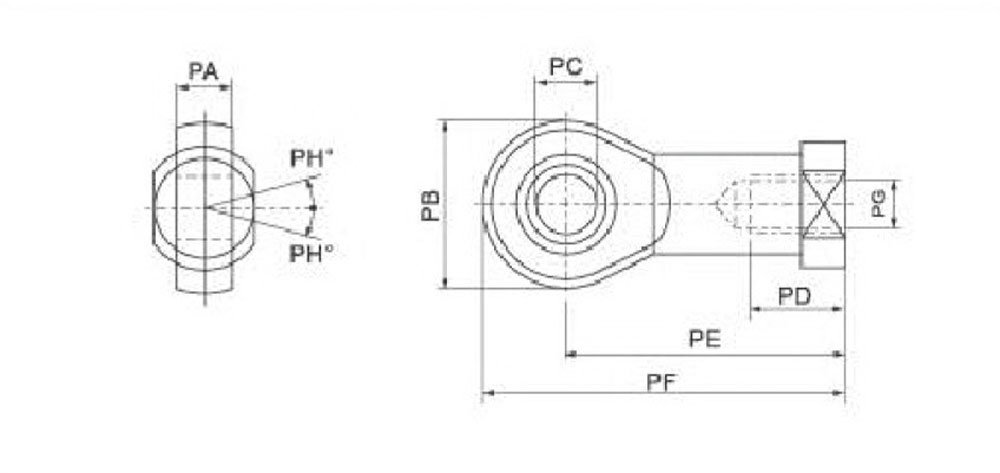

Dimension
Bore size(mm)	PA	PB	PC	PD	PE	PF	PG	PH
20	9	23	8	17	36	48	M8×1.25	13^O
25	11	27	10	21	43	57	M10×1.25	13^O
32	11	27	10	21	43	57	M10×1.25	13^O
40	12	30	12	24	50	65	M12×1.25	13^O
50	15	38	16	33	64	83	M16×1.5	15^O
63	15	38	16	33	64	83	M16×1.5	15^O
80	18	46	20	40	77	100	M20×1.5	15^O
100	18	46	20	40	77	100	M20×1.5	15^O
125	37	70	30	51	110	145	M27×2.0	15^O
160	43	80	35	56	125	165	M36×2.0	16^O
200	43	80	35	56	125	165	M36×2.0	16^O
