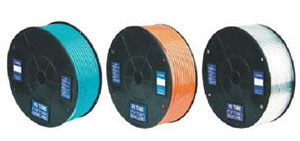

PU Tube APU Series
|
Order code |
||||
|
APU |
08 |
05 |
- |
RED |
|
Series code |
Tube O.D. 4 5 6 8 8 10 10 12 12 16 |
Tube I.D. 2.5 3 4 5 6 6.5 8 8 10 13 |
|
Color Red white Blue black |
|
Specification |
||||||||||
|
Model |
APU- 0425 |
APU- 0503 |
APU- 0604 |
APU- 0805 |
APU- 0806 |
APU- 1065 |
APU- 1008 |
APU- 1208 |
APU- 1210 |
APU- 1613 |
|
fluid |
Air, water, non-corrosive oil |
|||||||||
|
Operating pressure |
8~10kgf/cm2 |
|||||||||
|
Ambient & fluid temperature |
-20-60oc |
|||||||||
|
Tube O.D. |
4 |
5 |
6 |
8 |
8 |
10 |
10 |
12 |
12 |
16 |
|
Tube I.D. |
2.5 |
3 |
4 |
5 |
6 |
6.5 |
8 |
8 |
10 |
13 |
|
Length(m) |
200 |
200 |
200 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
Min. curve semi-diameter |
10 |
12 |
15 |
15 |
20 |
27 |
35 |
37 |
37 |
60 |
|
Burst pressure(kgf/cm2) |
10 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
Weight(kg) |
2.5 |
4.1 |
4.5 |
4 |
3.6 |
6.6 |
4.3 |
8.8 |
6.8 |
9.1 |
