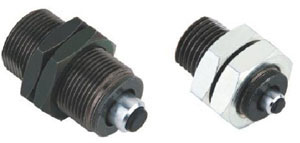

Shock Absorbers RBQ Series
|
Order code |
||||
|
RBQ |
C |
20 |
07 |
□ |
|
Short body |
Nil: basic type C: with rubber cushion |
Body thread |
stroke |
Nil: without nut S: with limited nut J: and 1 pcs Hexangular nut |
|
Specification |
||||||
|
Model |
RBQ1604 RBQC1604 |
RBQ2007 RBQC2007 |
RBQ2508 RBQC2508 |
RBQ3009 RBQC3009 |
RBQ3213 RBQC3213 |
|
|
Max. absorbing energy(j) |
1.96 |
11.8 |
19.6 |
33.3 |
49.0 |
|
|
Absorb stroke(mm) |
4 |
7 |
8 |
8.5 |
13 |
|
|
Shock speed (m/sec) |
0.05-3 |
0.05-3 |
0.05-3 |
0.05-3 |
0.05-3 |
|
|
Max. operating frequency(times/sec) |
60 |
60 |
45 |
45 |
30 |
|
|
Max. allowable push force(n) |
294 |
490 |
686 |
981 |
1177 |
|
|
Ambient & fluid temperature |
-10-80OC |
-10-80OC |
-10-80OC |
-10-80OC |
-10-80OC |
|
|
Spring force(N) |
STRETCHED |
6.08 |
12.75 |
15.69 |
21.57 |
24.52 |
|
RETUMBACK |
13.45 |
27.75 |
37.85 |
44.23 |
54.23 |
|
|

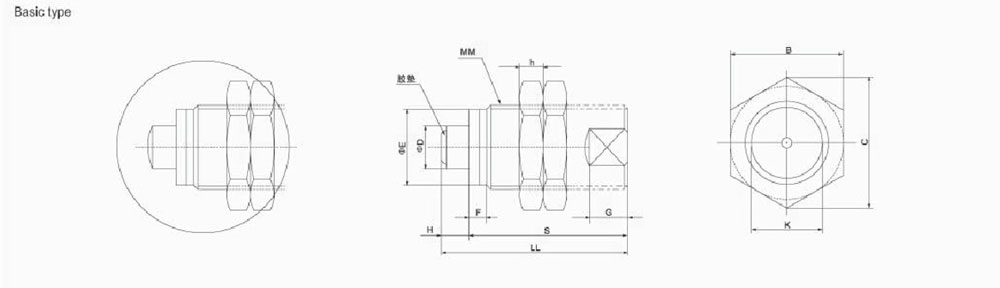

Dimension |
|||||||||||||
|
Model |
|
Size |
Hexangular nut |
||||||||||
|
Basic |
With rubber cushion |
D |
E |
F |
H |
K |
G |
LL |
MM |
S |
B |
C |
h |
|
RBQ1604 |
RBQC1604 |
6 |
14.2 |
3.5 |
4 |
14 |
7 |
31 |
M16*1.5 |
27 |
22 |
25.4 |
6 |
|
RBQ2007 |
RBQC2007 |
10 |
18.2 |
4 |
7 |
18 |
9 |
44.5 |
M20*1.5 |
37.5 |
27 |
31.2 |
6 |
|
RBQ2508 |
RBQC2508 |
12 |
23.2 |
4 |
8 |
23 |
10 |
52 |
M25*1.5 |
44 |
32 |
37 |
6 |
|
RBQ3009 |
RBQC3009 |
16 |
28.3 |
5 |
8.5 |
28 |
12 |
61.5 |
M30*1.5 |
53 |
41 |
47.3 |
6 |
|
RBQ3213 |
RBQC3213 |
18 |
30.2 |
5 |
13 |
30 |
13 |
76 |
M32*1.5 |
63 |
41 |
47.3 |
6 |
|

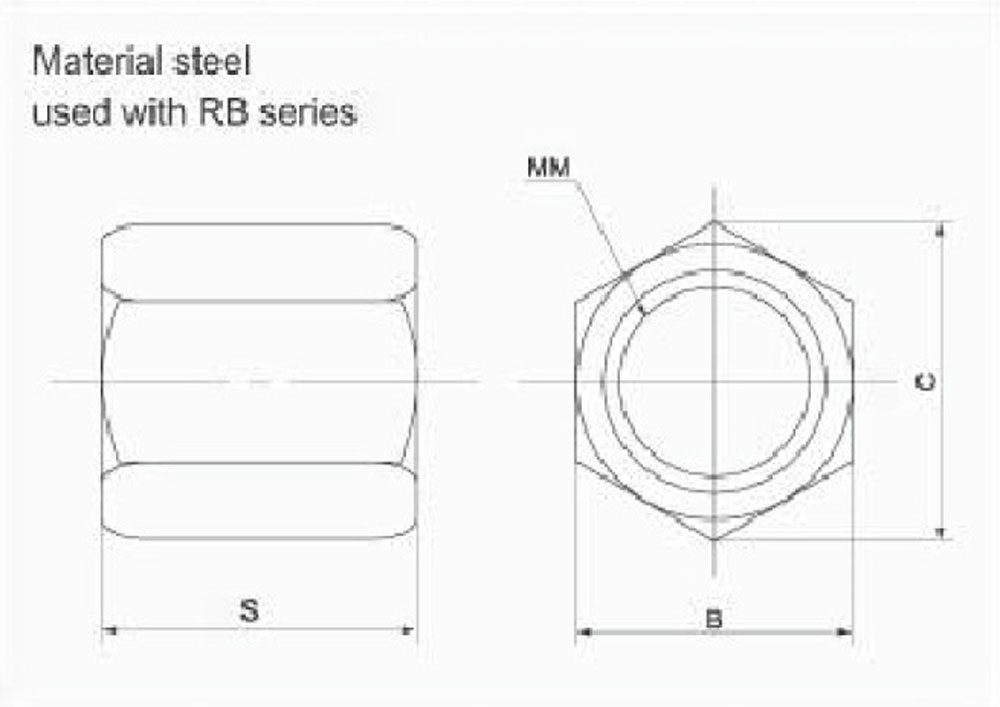

Dimension |
||||||||
|
Model |
B |
C |
S |
MM |
Model |
B |
C |
S |
|
RBQ16s |
22 |
25.4 |
12 |
M16*1.5 |

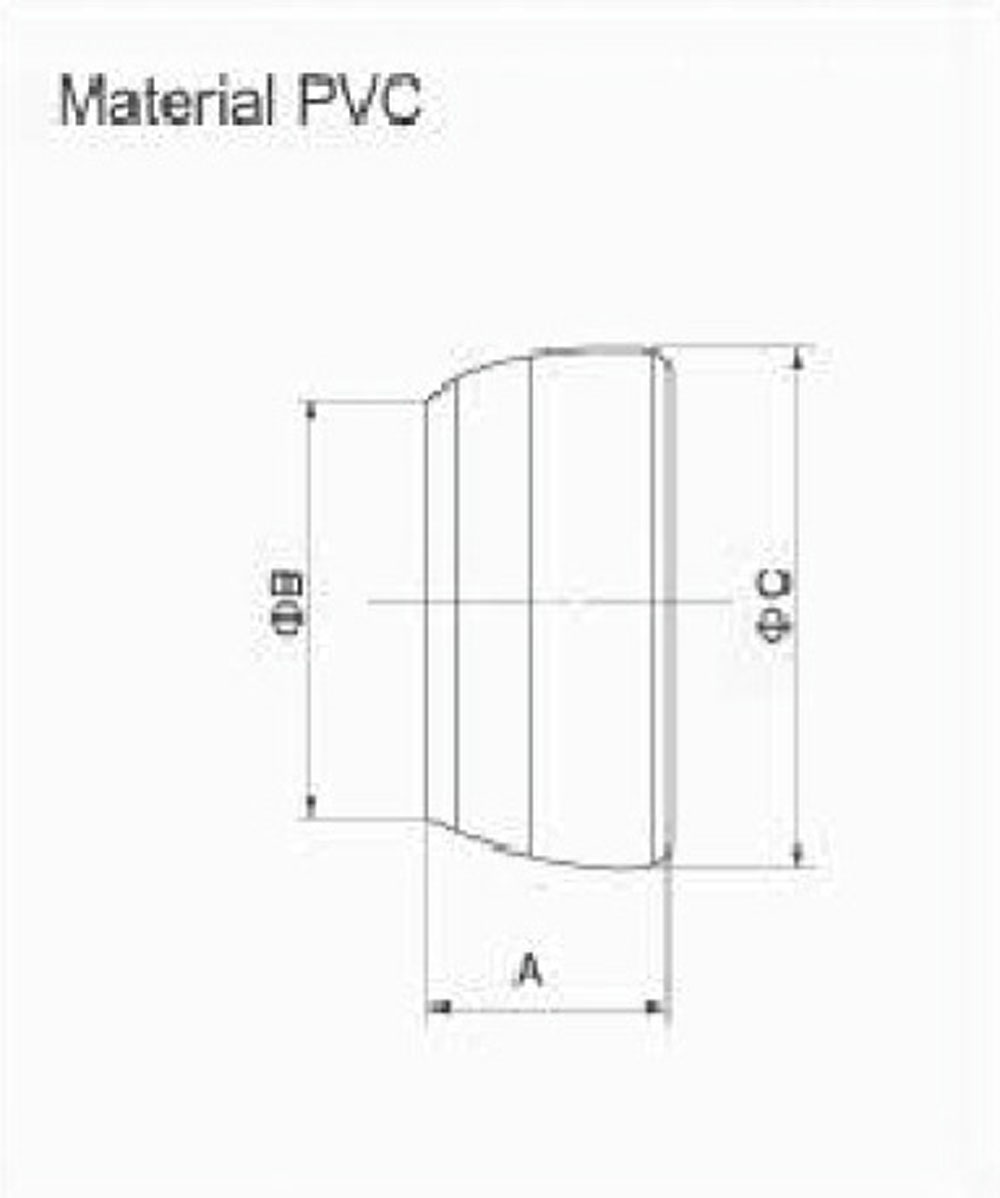

RBQ |
3.5 |
4 |
4.7 |
|
RBQ20s |
27 |
31.2 |
16 |
M20*1.5 |
RBQ |
4.5 |
8 |
8.3 |
|
RBQ25s |
32 |
37 |
18 |
M25*1.5 |
RBQ |
5 |
8.3 |
9.3 |
|
RBQ30s |
41 |
47.3 |
20 |
M30*1.5 |
RBQ |
6 |
11.3 |
12.4 |
|
RBQ32s |
41 |
47.3 |
25 |
M32*1.5 |
RBQ |
6.6 |
13.1 |
14.4 |
