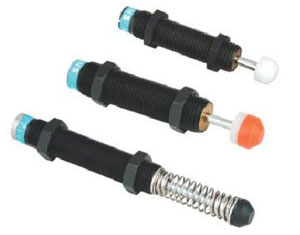

Shock Absorbers AC&FC Series

Order code

AC

14

16

1

N

Series code

AC: auto -compensate

FC: adjustable

Pro size

stoke

Stock speed

1:high

2:midst

3:low

Absorber cap

Nil: with

N: without

Specification
model		AC0806	AC1005	AC1008	AC1210	AC1412	AC1416	AC2020	AC2050	AC2525	AC2540	AC3660
stroke		6	5	8	10	12	16	20	50	25	40	60
Max. absorbed energy/Cycle(Nm)		2	3	4	5	15	20	40	60	80	120	250
MIN. absorbed energy/Cycle(Nm)		1200	3600	5000	10000	30000	35000	40000	60000	70000	75000	120000
Max. effective weight(Kg)	1	0.5	1	2	5	8	10	30	60	200	300	400
	2	2	3	4	10	50	70	200	400	800	1200	1500
	3	6	7	9	30	100	150	7000	1200	1500	2000	2400
Max. shock speed(m/s)	1	2	3	3	2	3	3	3.5	3.5	4	4	4
	2	1	1.5	1.5	1.5	1.5	1.5	2	2	2.5	2.5	2.5
	3	0.5	0.8	0.8	0.8	0.8	0.8	1	1	1	1	1
Weight(kg)		11	14	20	31.5	80	90	215	300	330	430	1030
Ambient & fluid temperature		-10-80^oC

Specification
model		FC1410	FC2016	FC2525	FC2540	FC3650	FC4225	FC4250	FC4275	FC6450	FC64100	FC64150
stroke		10	16	25	40	50	25	50	75	50	100	150
Max. absorbed energy/Cycle(Nm)		20	25	85	100	300	260	500	750	12000	24000	36000
MIN. absorbed energy/Cycle(Nm)		25000	30000	70000	80000	100000	125000	150000	180000	1500000	2000000	2500000
Max. effective weight(Kg)	1	80	200	400	700	1400	3000	4000	6000	12727	18181	23636
	2	80	200	400	700	1400	3000	4000	6000	12727	18181	23636
	3	80	200	400	700	1400	3000	4000	6000	12727	18181	23636
Max. shock speed(m/s)	1	3	3.5	3.5	3.5	3	3.5	4.5	4.5	1.5	1.5	1.5
	2	3	3.5	3.5	3.5	3	3.5	4.5	4.5	1.5	1.5	1.5
	3	3	3.5	3.5	3.5	3	3.5	4.5	4.5	1.5	1.5	1.5
Weight(kg)		90	230	350	455	1100	1280	1495	1710	4115	5280	6785
Ambient & fluid temperature		-10-80^oC50

Dimension
Model	A	B	C	D	E	F	G	J
AC0806	M8*1.0	6	44	33	5	3	2.8	11
AC1005	M10*1.0	5	32.7	22.9	4.8	3	3	12.7
AC1008	M10*1.0	8	51	38	5	3	3	12.7
AC1210	M12*1.0	10	60	45.5	4.5	4	3	14
AC1412	M14*1.0	12	88	67	9	6	4	19
AC1416	M14*1.0	16	111	86	9	6	4	19

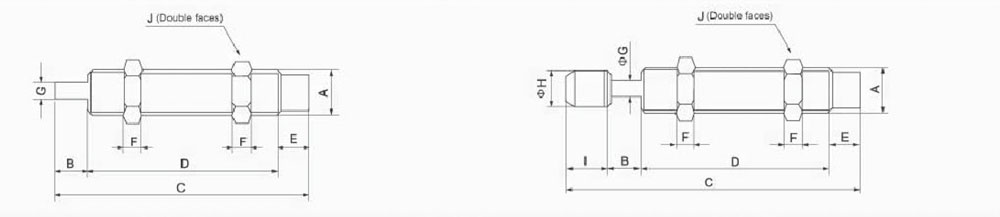

Dimension
Model	A	B	C	D	E	F	G	H	I	J
AC0806	M8*1.0	6	52.4	33	5	3	2.8	6.6	8.4	11
AC1005	M10*1.0	5	41.2	22.9	4.8	3	3	8.6	8.5	12.7
AC1008	M10*1.0	8	59.5	38	5	3	3	8.6	8.5	12.7
AC1210	M12*1.0	10	69.5	45.5	4.5	4	3	10.3	9.5	14
AC1412	M14*1.0	12	102.5	67	9	6	4	12	14.5	19
AC1416	M14*1.0	16	125.5	125.5	9	6	4	12	14.5	19
AC2020	M20*1.0	20	146.5	146.5	9	8	6	18	16.5	26
AC2050	M20*1.0	50	233.5	158	9	8	6	18	16.5	26
AC2525	M25*1.0	25	154.5	101	10	10	8	22	18.3	32
AC2540	M25*1.0	40	208.3	127	10	10	8	22	31.3	32
AC3660	M36*1.0	60	243	134	11	15	10	35	21	46

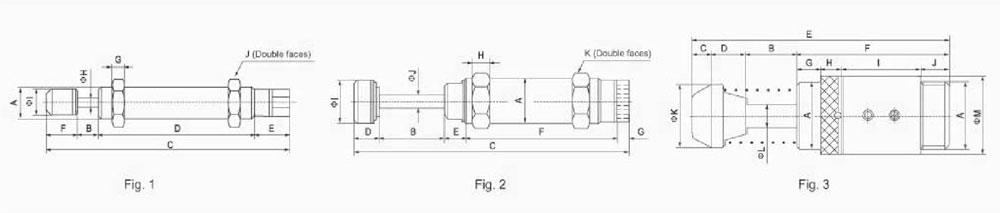

Dimension fig 1
Type	A	B	C	D	E	F	G	H	I	J
Fc1410	M14*1.5	10	113.5	73	16	14.5	6	4	12	19
Fc2016	M20*1.5	16	149.5	101	16	16.5	8	6	18	26
Fc2525	M25*1.5	25	161.8	101	17.5	18.3	10	8	22	32
Fc2540	M25*1.5	40	215.8	127	17.5	31.3	10	8	22	32

Dimension fig 2
Type	A	B	C	D	E	F	G	H	I	J	K
Fc3650	M36*1.5	50	42	21	17	146	8	15	35	10	46
Fc4225	M42*1.5	25	188.5	34	26	104.5	5	15	44.5	12	50
Fc4250	M42*1.5	50	241	34	26	134	5	15	44.5	12	50
Fc4275	M42*1.5	75	301.5	39	26	164	5	15	44.5	12	50

Dimension fig 3
Type	A	B	C	D	E	F	G	H	I	J	K	L
Fc6450	2_1/2UNF(63.5)	50	38.8	33	247.8	146	23	20	77	26	59	20
Fc64100	2_1/2UNF(63.5)	100	18.8	33	347.8	196	23	20	127	26	59	20
Fc6415	2_1/2UNF(63.5)	150	18.8	43	467.8	256	23	20	187	26	59	20
