Compact Air Cylinder SDA Series
|
Order code |
|||||
|
SDA |
50×50 |
- |
S |
- |
B |
|
Series SDA: basic type SDAD: both sides piston rod type SDAJ: both sides piston rod type (one side adjustable) |
Bore×stroke |
|
Built-in magnets Nil: without S: with |
|
Thread type Nil: female type B: mate thread type N: no thread type |
|
Specification |
||||||||||
|
Bore size(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
Action |
Double acting type |
|||||||||
|
Fluid |
Air(filtered through40u filter element) |
|||||||||
|
Operating pressure |
0.1-0.9Mpa(1-9kgf/cm2) |
|||||||||
|
Proof pressure |
1.35Mpa(13.5kgf/cm2) |
|||||||||
|
Ambient& fluid temperature |
-5-70oc |
|||||||||
|
Cushion |
Without cushion |
|||||||||
|
Port size |
M5 |
1/8" |
1/4" |
3/8" |
||||||
|
Body material |
Aluminum alloy |
|||||||||
|
Stroke |
||||||||||||||||||||||
|
Bore size(mm) |
Standard stoke(mm) |
Maximum stroke(mm) |
Allowable stroke(mm) |
|||||||||||||||||||
|
12 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
|
|
|
|
|
|
|
|
50 |
60 |
|
16 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
|
|
|
|
|
|
|
|
50 |
60 |
|
20 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|
|
|
|
80 |
90 |
|
25 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|
|
|
|
80 |
90 |
|
32 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
|
40 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
|
50 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
|
63 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
|
80 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
|
100 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
|
Applicable Auto Switch |
|||||||||||
|
Type bore size |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
|
Auto switch |
CS1-J CS1-G |
||||||||||
|

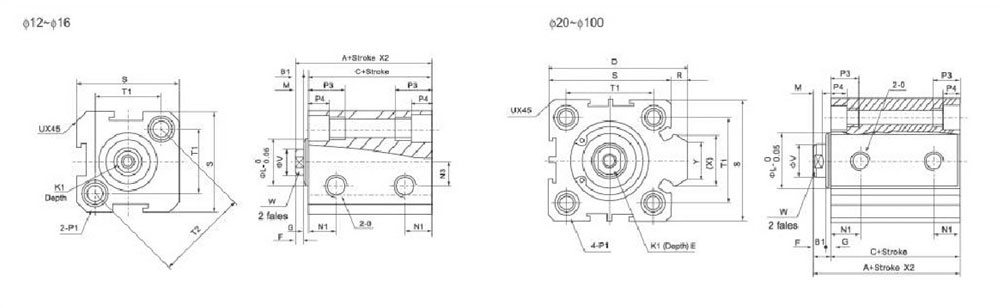

Dimension |
|||||||||||||||||
|
Bore size(mm) |
Standard type |
With magnet |
Stroke <10 Stroke>10 |
||||||||||||||
|
A |
B1 |
C |
A |
B1 |
C |
D |
E |
E |
F |
G |
K1 |
L |
M |
N1 |
|
O |
|
|
12 |
22 |
5 |
17 |
32 |
5 |
27 |
- |
6 |
6 |
4 |
1 |
M3×0.5 |
10.2 |
2.8 |
6.3 |
6.3 |
M5×0.8 |
|
16 |
24 |
5.5 |
18.5 |
34 |
5.5 |
28.5 |
- |
6 |
6 |
4 |
1.5 |
M3×0.5 |
11 |
2.8 |
7.3 |
6.5 |
M5×0.8 |
|
20 |
25 |
5.5 |
19.5 |
35 |
5.5 |
29.5 |
36 |
8 |
8 |
4 |
1.5 |
M4×0.7 |
16 |
2.8 |
7.5 |
- |
M5×0.8 |
|
25 |
27 |
6 |
21 |
37 |
6 |
31 |
42 |
10 |
10 |
4 |
2 |
M5×0.8 |
17 |
2.8 |
8 |
- |
M5×0.8 |
|
32 |
31.5 |
7 |
24.5 |
41.5 |
7 |
34.5 |
50 |
12 |
12 |
4 |
3 |
M6×1 |
22 |
2.8 |
9 |
- |
G1/8 |
|
40 |
33 |
7 |
26 |
43 |
7 |
36 |
58.5 |
12 |
12 |
4 |
3 |
M8×1.25 |
28 |
2.8 |
10 |
- |
G1/8 |
|
50 |
37 |
9 |
28 |
47 |
9 |
38 |
72.5 |
15 |
15 |
5 |
4 |
M10×1.5 |
38 |
2.8 |
10.5 |
- |
G1/4 |
|
63 |
41 |
9 |
32 |
51 |
9 |
42 |
84.5 |
15 |
15 |
5 |
4 |
M10×1.5 |
40 |
2.8 |
11.8 |
- |
G1/4 |
|
80 |
52 |
11 |
41 |
62 |
11 |
51 |
104 |
15 |
20 |
6 |
5 |
M14×1.5 |
45 |
4 |
14.5 |
- |
G3/8 |
|
100 |
63 |
12 |
51 |
73 |
12 |
61 |
124 |
18 |
20 |
7 |
5 |
M18×1.5 |
55 |
4 |
20.5 |
- |
G3/8 |
|
Dimension |
||||||||||||
|
Bore size(mm) |
P1 |
P3 |
P4 |
R5 |
S |
T1 |
T2 |
U |
V |
W |
X |
Y |
|
12 |
Both side:φ6.5 thread M5×0.8 through hole:φ4.2 |
12 |
4.5 |
- |
25 |
16.2 |
23 |
1.6 |
6 |
5 |
- |
- |
|
16 |
Both side:φ6.5 thread M5×0.8 through hole:φ4.2 |
12 |
4.5 |
- |
29 |
19.8 |
28 |
1.8 |
6 |
5 |
- |
- |
|
20 |
Both side:φ6.5 thread M5×0.8 through hole:φ4.2 |
14 |
4.5 |
2 |
34 |
24 |
- |
2.0 |
8 |
6 |
11.3 |
10 |
|
25 |
Both side:φ6.5 thread M6×1.0 through hole:φ4.6 |
15 |
5.5 |
2 |
40 |
28 |
- |
3.4 |
10 |
8 |
18.3 |
10 |
|
32 |
Both side:φ6.5 thread M6×1.0 through hole:φ4.6 |
16 |
5.5 |
6 |
44 |
34 |
- |
2.15 |
12 |
10 |
12 |
15 |
|
40 |
Both side:φ6.5 thread M8×1.25 through hole:φ6.5 |
20 |
7.5 |
6.5 |
52 |
40 |
- |
2.25 |
16 |
14 |
21.3 |
16 |
|
50 |
Both side:φ6.5 thread M8×1.25 through hole:φ6.5 |
25 |
8.5 |
9.5 |
62 |
48 |
- |
4.15 |
20 |
17 |
30 |
20 |
|
63 |
Both side:φ6.5 thread M8×1.25 through hole:φ6.5 |
25 |
8.5 |
9.5 |
75 |
60 |
- |
3.15 |
20 |
17 |
28.7 |
20 |
|
80 |
Both side:φ6.5 thread M12×1.75 through hole:φ49.2 |
25 |
10.5 |
10 |
94 |
74 |
- |
3.65 |
25 |
22 |
36 |
26 |
|
100 |
Both side:φ6.5 thread M14×2 through hole:φ11.3 |
30 |
13 |
10 |
114 |
90 |
- |
3.65 |
25 |
22 |
35 |
26 |
|

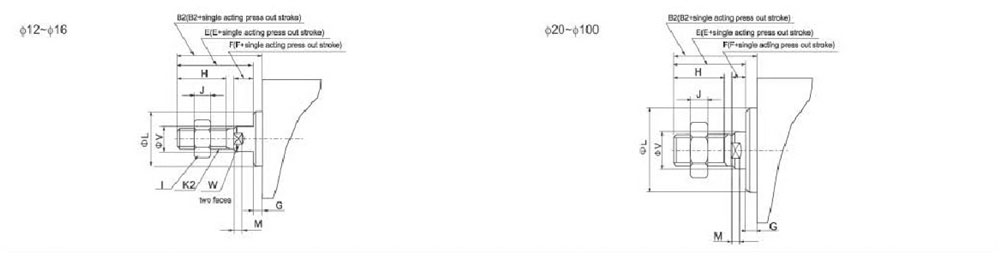

Dimension |
||||||||||||
|
Bore size(mm) |
B2 |
E |
F |
G |
H |
I |
J |
|
L |
M |
V |
W |
|
12 |
17 |
16 |
4 |
1 |
10 |
8 |
4 |
M5×0.8 |
10.2 |
2.8 |
6 |
5 |
|
16 |
17.5 |
16 |
4 |
1.5 |
10 |
8 |
4 |
M3×0.8 |
11 |
2.8 |
6 |
5 |
|
20 |
20.5 |
19 |
4 |
1.5 |
13 |
10 |
5 |
M6×1.0 |
15 |
2.8 |
8 |
6 |
|
25 |
23 |
21 |
4 |
2 |
15 |
12 |
6 |
M5×0.8 |
17 |
2.8 |
10 |
8 |
|
32 |
25 |
22 |
4 |
3 |
15 |
17 |
6 |
M8×1.25 |
22 |
2.8 |
12 |
10 |
|
40 |
35 |
32 |
4 |
3 |
25 |
19 |
8 |
M8×1.25 |
28 |
2.8 |
16 |
14 |
|
50 |
37 |
33 |
5 |
4 |
25 |
27 |
11 |
M10×1.5 |
38 |
2.8 |
20 |
17 |
|
63 |
37 |
33 |
5 |
4 |
25 |
27 |
11 |
M10×1.5 |
40 |
2.8 |
20 |
17 |
|
80 |
44 |
39 |
6 |
5 |
30 |
32 |
13 |
M14×1.5 |
45 |
4 |
25 |
22 |
|
100 |
50 |
45 |
7 |
5 |
35 |
36 |
13 |
M18×1.5 |
55 |
4 |
32 |
27 |
