Compact Cylinder CQ2 Series
Order code |
||||||
CQ2 |
B |
50×50 |
- |
D |
- |
M |
CQ2: without built-in magnet type CDQ2: with built-in magnet type |
Mounting type B: through -hole A: Both ends female thread |
Bore×stroke |
|
Action type D: double acting S: single acting (spring return type) T: single acting (spring stretched type) |
|
Nil: rod end Female thread M: rod end male thread |
Specification |
||||||||||
Bore size(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
Action |
Double acting type |
|||||||||
Fluid |
Air(filtered through40u filter element) |
|||||||||
Operating pressure |
0.1-0.9Mpa(1-9kgf/cm2) |
|||||||||
Proof pressure |
1.35Mpa(13.5kgf/cm2) |
|||||||||
Ambient & fluid temperature |
-5-70oc |
|||||||||
Cushion |
Without cushion |
|||||||||
Port size |
M5 |
1/8" |
1/4" |
3/8" |
||||||
Body material |
Aluminum alloy |
Stroke |
||||||||||||||||||||||
Bore size(mm) |
Standard stoke(mm) |
Maximum stroke(mm) |
Allowable stroke(mm) |
|||||||||||||||||||
12 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
|
|
|
|
|
|
|
|
50 |
60 |
16 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
|
|
|
|
|
|
|
|
50 |
60 |
20 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|
|
|
|
80 |
90 |
25 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
|
|
|
|
80 |
90 |
32 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
40 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
50 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
63 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
80 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
100 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
95 |
100 |
130 |
150 |
Applicable Auto Switch |
|||||||||||
Type bore size |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
Auto switch |
D-A |

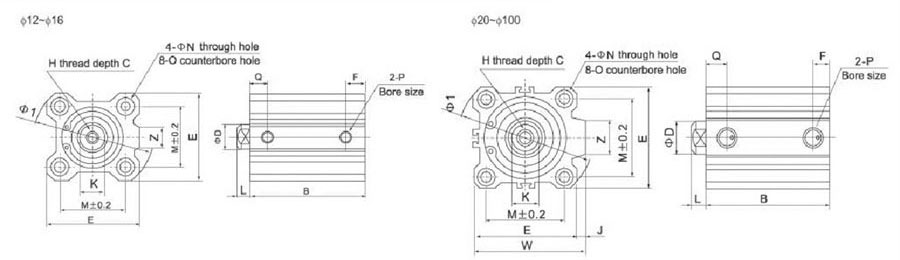

Dimension |
|||||||||||||||||
Bore size(mm) |
B |
ΦD |
E |
F |
H |
C |
I |
J |
K |
L |
M |
ΦN |
Φ0 |
P |
Q |
W |
Z |
12 |
17+St |
6 |
25 |
5 |
M3×0.5 |
6 |
32 |
- |
5 |
3.5 |
15.5 |
3.5 |
6.5 depth 3.5 |
M5×0.8 |
7.5 |
- |
- |
16 |
18.5+St |
8 |
29 |
5.5 |
M4×0.7 |
8 |
38 |
- |
6 |
3.5 |
20 |
3.5 |
6.5 depth 3.5 |
M5×0.8 |
8 |
- |
10 |
20 |
19.5+St |
10 |
36 |
5.5 |
M5×0.8 |
7 |
47 |
- |
8 |
4.5 |
25.5 |
5.5 |
9 depth 7 |
M5×0.8 |
9 |
- |
10 |
25 |
22.5+St |
12 |
40 |
5.5 |
M6×1.0 |
12 |
52 |
- |
10 |
5 |
28 |
5.5 |
9 depth 7 |
M5×0.8 |
11 |
- |
10 |
32 |
23+St |
16 |
45 |
7.5 |
M8×1.25 |
13 |
60 |
4.5 |
14 |
7 |
34 |
5.5 |
9 depth 7 |
1/8 |
10.5 |
49.5 |
18 |
40 |
29.5+St |
16 |
52 |
8 |
M8×1.25 |
13 |
69 |
5 |
14 |
7 |
40 |
5.5 |
9 depth 7 |
1/8 |
11 |
57 |
18 |
50 |
30.5+St |
20 |
64 |
10.5 |
M10×1.5 |
15 |
86 |
7 |
17 |
8 |
50 |
6.6 |
11 depth 8 |
1/4 |
10.5 |
74 |
22 |
63 |
36+St |
20 |
77 |
10.5 |
M10×1.5 |
15 |
103 |
7 |
17 |
8 |
60 |
9 |
14 depth 10.5 |
1/4 |
15 |
84 |
22 |
80 |
43.5+St |
25 |
98 |
12.5 |
M16×2.0 |
21 |
132 |
6 |
22 |
10 |
77 |
11 |
17.5 depth 13.5 |
3/8 |
16 |
104 |
26 |
100 |
53+St |
30 |
117 |
13 |
M20×2.5 |
27 |
156 |
6.5 |
27 |
12 |
94 |
11 |
17.5 depth 13.5 |
3/8 |
23 |
123.5 |
26 |
Dimension |
||||||||
Bore size(mm) |
C |
X |
D |
H |
L |
K |
O |
R |
12 |
9 |
10.5 |
6 |
M5×0.8 |
14.5 |
5 |
M4×0.7 |
7 |
16 |
10 |
12 |
8 |
M6×1.0 |
15.5 |
6 |
M7×0.7 |
7 |
20 |
12 |
14 |
10 |
M8×1.25 |
18.5 |
8 |
M6×1.0 |
10 |
25 |
15 |
17.5 |
12 |
M10×1.25 |
22.5 |
10 |
M6×1.0 |
10 |
32 |
20.5 |
23.5 |
16 |
M14×1.5 |
28.5 |
14 |
M6×1.0 |
10 |
40 |
20.5 |
23.5 |
16 |
M14×1.5 |
28.5 |
14 |
M6×1.0 |
10 |
50 |
26 |
28.5 |
20 |
M18×1.5
|
33.5 |
17 |
M8×1.25
|
14 |
63 |
26 |
28.5 |
20 |
M18×1.5
|
33.5 |
17 |
M10×1.5
|
18 |
80 |
32.5 |
35.5 |
25 |
M22×1.5
|
43.5 |
22 |
M12×1.75
|
22 |
100 |
32.5 |
35.5 |
30 |
M26×1.5 |
43.5 |
27 |
M12×1.75 |
22 |
