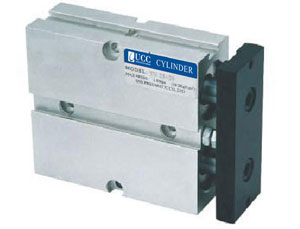

Double Rod Air Cylinder TN Series

Order code

TN

-

20×50

-

S

Basic type

Bore×stroke

Built-in magnets

Nil: without

S: with

Specification
Bore size(mm)	10	16	20	25	32	Applicable auto switch
Action	Double acting type					Bore Size (cm)	Standard stroke												Max. Stroke (mm)	Allow able stroke (mm)	Auto switch
Fluid	Air(filtered through 40u filter element)
Operating pressure	0.1-0.9Mpa(1-9kgf/cm²)
Proof pressure	1.35Mpa(13.5kgf/cm²)					10	10	20	30	40	50	60	70						70	100	CS1-J
Ambient & fluid temperature	-5-70C					16	10	20	30	40	50	60	70	80	90	100	125	150	150	200
Cushion	Fixed cushion					20	10	20	30	40	50	60	70	80	90	100	125	150	150	200
Port size	M5×0.8				G1/8"	25	10	20	30	40	50	60	70	80	90	100	125	150	150	200
Body material	Aluminum alloy					32	10	20	30	40	50	60	70	80	90	100	125	150	150	200

Dimension
Bore size(mm)	A	B	C	D	Stroke≤	10	20	30	40	50	60	70
10	58	12	46	10	E	30	30	35	40	45	50	55

Dimension
Bore size(mm)	A	B	C	D	Stroke≤	10	20	30	40	50	60	70	80	90	100	125	150	175
10	108	30	78	35	E	45	50	55	60	65	70	75	80	85	95	102.5	115	122.5

Dimension
Bore size(mm)	A	B	C	D	Stroke<	10	20	30	40	50	60	70	80	90	100	125	150	F	G	H	I
16	68	15	53	20	E	30	35	40	45	50	55	60	65	70	75	87.5	30	8	47	6	24
20	78	20	58	20	E	45	35	40	45	50	55	60	65	70	75	87.5	45	40	55	9	28
25	81	19	62	20	E	40	40	45	50	55	60	65	70	75	80	92.5	40	10	10	66	34

Dimension
Bore size(mm)	J	K	L	M	N1	N2	P1	P2	Q	R	S	T	V	W
16	M14×0.7depth5	47	53	20	22	10	Two side:φ7.5depth72mm through holeφ4.5	Two side:φ4.4depth72mm through holeφ4.5	34	14	54	21	8	62
20	M14×0.7depth5	55	61	24	25	12	Two side:φ7.5depth72mm through holeφ4.5	Two side:φ4.4depth72mm through holeφ4.5	55	6	62	25	10	82
25	M14×0.8depth5	66	72	29	30	12	Two side:φ7.5depth72mm through holeφ4.5	Two side:φ4.4depth72mm through holeφ4.5	56	7	73	30	12	102

Dimension
Bore size(mm)	PA	PB	PC	PD	PE	PF	PG	PH
10	18	0.5	Φ6.2depth3.5mm through holeφ4.5	5.2	6	3	5.2	M3×0.5 Depth 5mm
16	24	1	Φ7.8depth4.6mm through holeφ4.5	6.2	8	3	6.2	M4×0.7 Depth 6mm
20	28	1	Φ11depth68mm through holeφ4.5	8.2	10	3	8.2	M6×1 Depth 8mm
25	34	1	Φ11depth68mm through holeφ4.5	10.2	12	3	10.2	M6×1 Depth 8mm
32	42	2	Φ17depth12mm through holeφ4.5	14	16	3	14	M10×1 .5Depth 14mm
