Micro Cylinder MA Series
|
Order code |
||||||
|
MA |
CM |
25×50 |
- |
S |
- |
FA |
|
Series MA: double-acting type MAD: double rod type MAJ: double rod type (one side adjustable) |
Rear cove type Nil: single clevis type CM: round end type |
bore×stroke |
|
Built-in magnets Nil: without S: with |
|
Mounting type Nil: basic type FA: front flange type FB: rear flange type LB: foot bracket type |
|
Stroke |
||||||||||||
|
Bore size(mm) |
Standard stroke(mm) |
Maximum stroke(mm) |
Allowable stroke(mm) |
|||||||||
|
16 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
|
|
500 |
800 |
|
20 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
500 |
800 |
|
25 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
800 |
800 |
|
32 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
800 |
1200 |
|
40 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
1200 |
1200 |
|
Applicable auto switch |
|||||
|
Type bore size |
16 |
20 |
25 |
32 |
40 |
|
Auto switch |
CS1-F CS1-U |
||||
|
Auto switch mounting base |
MA-16 |
MA-20 |
MA-25 |
MA-32 |
MA-40 |
|

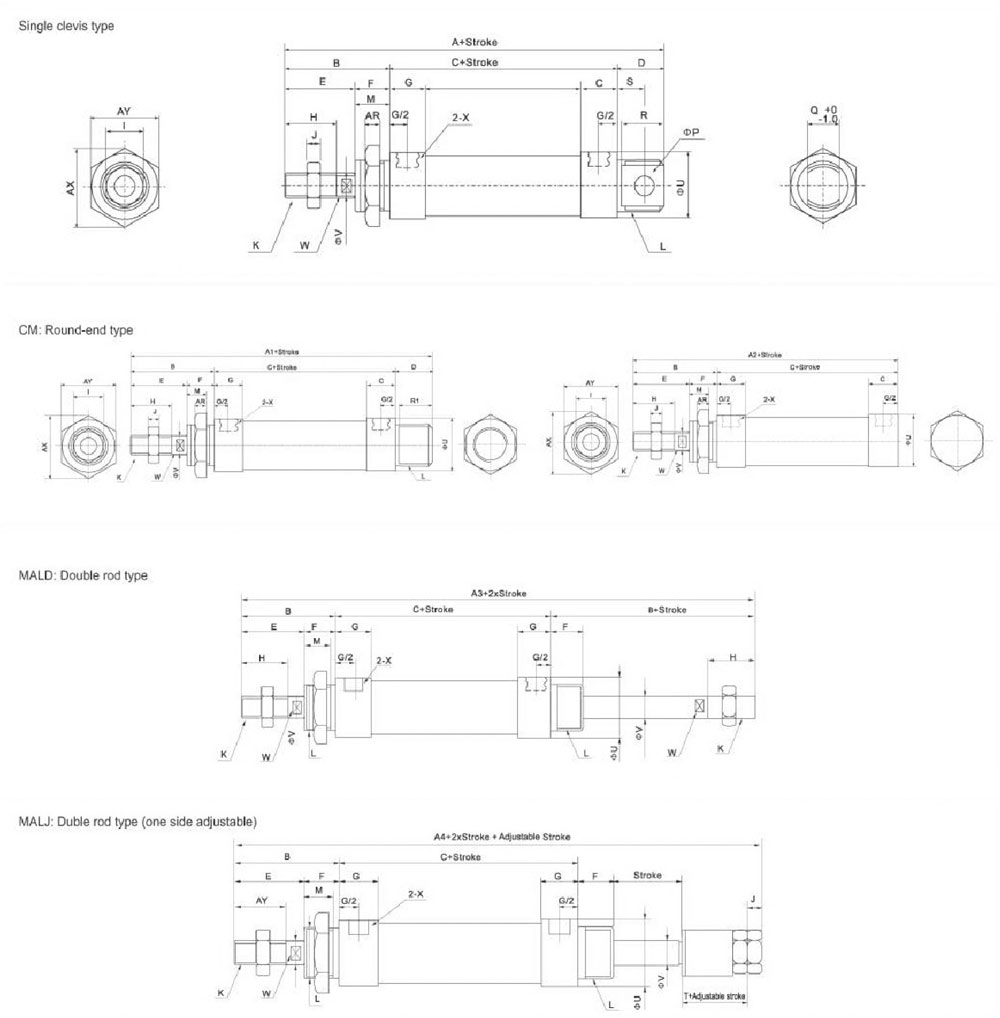

Dimension |
|||||||||||||||
|
Bore size(mm) |
A |
A1 |
A2 |
A3 |
A4 |
B |
C |
D |
D1 |
E |
F |
G |
H |
I |
J |
|
16 |
107 |
108 |
92 |
131 |
137 |
40 |
51 |
16 |
16 |
24 |
16 |
10 |
16 |
10 |
5 |
|
20 |
131 |
108 |
110 |
150 |
147 |
40 |
70 |
21 |
12 |
28 |
12 |
16 |
20 |
12 |
5 |
|
25 |
135 |
122 |
114 |
158 |
154 |
44 |
70 |
21 |
14 |
30 |
14 |
16 |
22 |
17 |
6 |
|
32 |
141 |
128 |
114 |
158 |
154 |
44 |
70 |
21 |
14 |
30 |
14 |
16 |
22 |
17 |
6 |
|
40 |
143 |
128 |
116 |
162 |
160 |
46 |
70 |
27 |
14 |
32 |
14 |
16 |
24 |
19 |
7 |
|
Dimension |
|||||||||||||
|
Bore size(mm) |
K |
L |
M |
P |
Q |
R |
S |
U |
V |
X |
AR |
AX |
AY |
|
16 |
M6×1 |
M16×1.5 |
14 |
6 |
12 |
16 |
10 |
22 |
6 |
RCM5 |
6 |
25 |
22 |
|
20 |
M8×1.25 |
M22×1.5 |
10 |
8 |
16 |
19 |
12 |
30 |
8 |
RC1/8 |
7 |
3 |
29 |
|
25 |
M10×1.25 |
M22×1.5 |
12 |
8 |
16 |
19 |
12 |
34 |
10 |
RC/8 |
7 |
33 |
29 |
|
32 |
M10×1.25 |
M24×2.0 |
12 |
10 |
16 |
25 |
15 |
39 |
12 |
RC1/8 |
8 |
37 |
32 |
|
40 |
M12×1.25 |
M30×2.0 |
12 |
12 |
20 |
25 |
15 |
49 |
18 |
RC1/4 |
9 |
47 |
41 |
|
Specification |
|||||
|
Bore size(mm) |
16 |
20 |
25 |
32 |
40 |
|
Action |
Double acting type |
||||
|
Fluid |
Air(filtered through 40u filter element) |
||||
|
Operating pressure |
0.1-0.9Mpa(1-9kgf/cm2) |
||||
|
Proof pressure |
1.35Mpa(13.5kgf/cm2) |
||||
|
Ambient & fluid temperature |
-5-70oc |
||||
|
Cushion |
Without cushion |
||||
|
Port size |
M5 |
1/8" |
1/4" |
||
|
Body material |
Stainless steel |
||||
