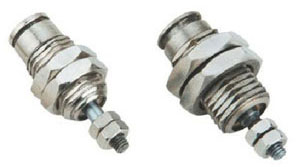

Pin Cylinder CJP Series
|
Order code |
|||
|
CJP |
B |
- |
10×5 |
|
Single acting (Spring return type) |
Mounting type B: panel mounting S: built-in |
|
Bore×stroke |
|
Specification |
|||
|
Bore size(mm) |
6 |
10 |
15 |
|
Action |
Single acting(contractible type) |
||
|
Fluid |
Air(filtered through 40u filter element) |
||
|
Operating pressure |
0.1-0.7Mpa(1-7kgf/cm2) |
||
|
Proof pressure |
1.05Mpa(10.5kgf/cm2) |
||
|
Ambient & fluid temperature |
-5 |
||
|
Cushion |
Without cushion |
||
|
Port size |
M5 |
||
|
Body material |
Brass |
||
|
Specification |
|
|
Bore size(mm) |
Standard stroke(mm) |
|
6 |
5,10,15 |
|
10 |
5,10,15 |
|
15 |
5,10,15 |
|

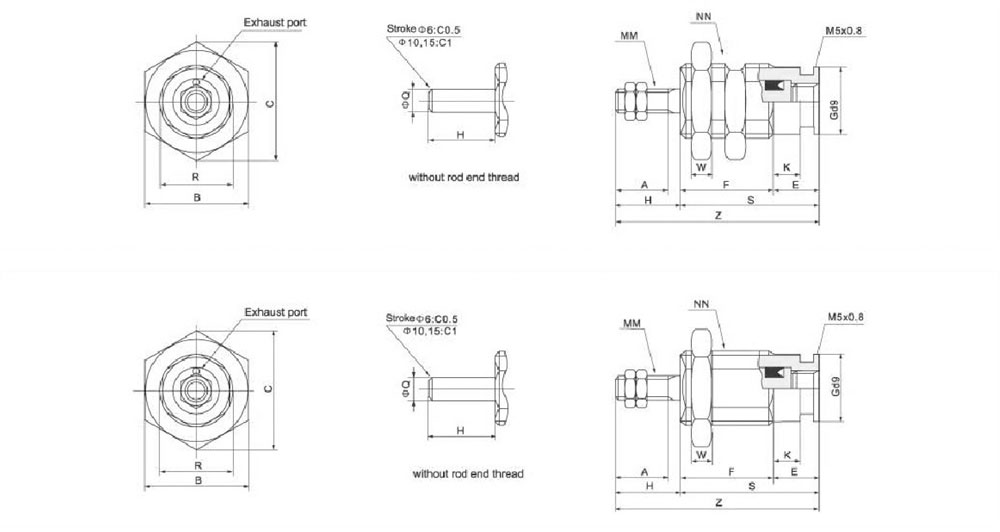

Dimension |
|||||||||||||||||||||
|
Bore size(mm) |
A |
B |
C |
E |
F |
G |
H |
K |
MM |
NN |
R |
S |
W |
Z |
Q |
||||||
|
5st |
10st |
15st |
5st |
10st |
15st |
5st |
10st |
15st |
|||||||||||||
|
6 |
7 |
12 |
13.9 |
6 |
12.5 |
19.5 |
26.5 |
8.5 |
9 |
3.5 |
M3×0.5 |
M10×1.0 |
9 |
18.5 |
22.5 |
32.5 |
3 |
27.5 |
34.5 |
41.5 |
3 |
|
10 |
10 |
19 |
22 |
6 |
14.5 |
21 |
28 |
12 |
12 |
3.5 |
M4×0.7 |
M15×1.5 |
13 |
20.5 |
27 |
34 |
4 |
32.5 |
39 |
46 |
5 |
|
15 |
12 |
27 |
31 |
7 |
16.5 |
22.5 |
29 |
19 |
14 |
4.2 |
M5×0.8 |
M22×1.5 |
20 |
23.5 |
29.5 |
36 |
5 |
37.5 |
43.5 |
50 |
6 |
