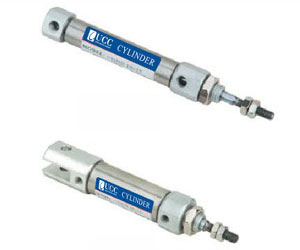

Slim Cylinder CJ2 Series
|
Specification |
|||
|
Bore size(mm) |
6 |
10 |
16 |
|
Action |
Double acting type |
||
|
Fluid |
Air(filtered through 40u filter element) |
||
|
Operating pressure |
0.1-0.7Mpa(1-7kgf/cm2) |
||
|
Proof pressure |
1.05Mpa(10.5kgf/cm2) |
||
|
Ambient & fluid temperature |
-5-70oc |
||
|
Cushion |
Without cushion |
||
|
Port size |
M5 |
||
|
Body material |
Stainless steel |
||
|
Specification |
|||
|
Bore size(mm) |
6 |
10 |
16 |
|
Action |
Double acting type |
||
|
Fluid |
Air(filtered through 40u filter element) |
||
|
Operating pressure |
0.1-0.7Mpa(1-7kgf/cm2) |
||
|
Proof pressure |
1.05Mpa(10.5kgf/cm2) |
||
|
Ambient & fluid temperature |
-5-70oc |
||
|
Cushion |
Without cushion |
||
|
Port size |
M5 |
||
|
Body material |
Stainless steel |
||
|
Stroke |
|||||||||||||
|
Bore size(mm) |
Standard stroke (mm) |
||||||||||||
|
6 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
|
|
|
|
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
|
|
|
|
16 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
55 |
60 |
75 |
100 |
125 |
|
Applicable auto switch |
|||
|
Type bore size |
6 |
10 |
16 |
|
Auto switch |
CS1-F CS1-U |
||
|

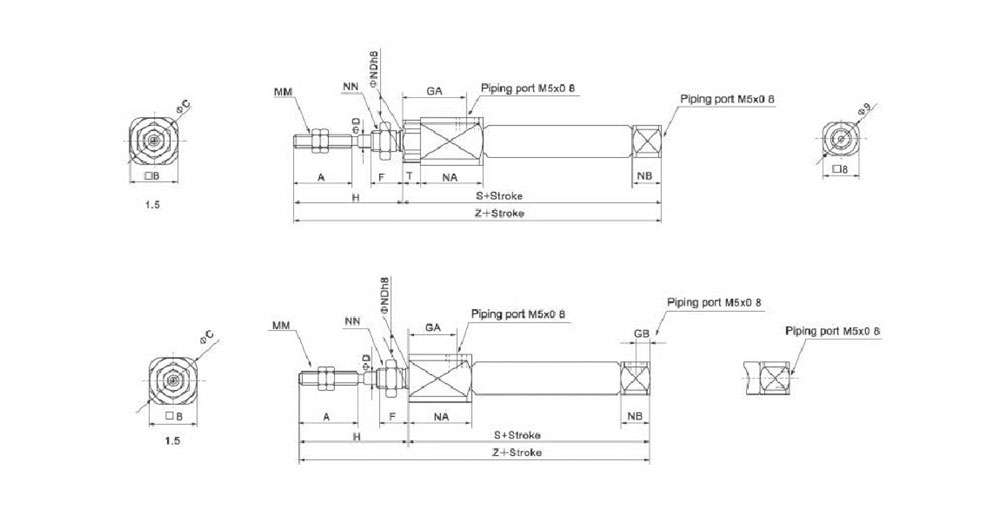

Dimension |
||||||||||||||||
|
Bore size(mm) |
A |
B |
C |
D |
F |
GA |
GB |
H |
MM |
MA |
NB |
NDh8 |
NN |
S |
T |
Z |
|
6 |
15 |
12 |
14 |
3 |
8 |
14.5 |
|
28 |
M3×0.5 |
16 |
7 |
6 |
M6×1.0 |
49 |
3 |
77 |
|
10 |
15 |
12 |
14 |
4 |
8 |
8 |
5 |
28 |
M4×0.7 |
12.5 |
9.5 |
8 |
M8×1.0 |
46 |
|
74 |
|
16 |
15 |
18 |
20 |
5 |
8 |
8 |
5 |
28 |
M5×0.8 |
12.5 |
9.5 |
10 |
M10×1.0 |
47 |
|
75 |
