Small Cylinder CDM2 Series
Order code |
||||||
CM2 |
CM |
25×50 |
- |
D |
- |
FA |
CM2:without built-in magnet type CDM2:without built-in magnet type CM2B:double-acting type CM2BD:double rod type CM2BJ:double rod type (one side adjustable) |
Rear cove type Nil: single clevis type CM: round end type U: flat and type |
bore×stroke |
|
Action type D: double acting S: single acting(spring retune type) T :single Acting (spring stretched type) |
|
Mounting type Nil :basic type FA: front flange type FB: rear flange type LB: foot bracket type |
Stroke |
||||||||||||
Bore size(mm) |
Standard stroke(mm) |
Maximum stroke(mm) |
Allowable stroke(mm) |
|||||||||
16 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
|
|
300 |
500 |
20 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
500 |
1000 |
25 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
500 |
1000 |
32 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
500 |
1000 |
40 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
|
|

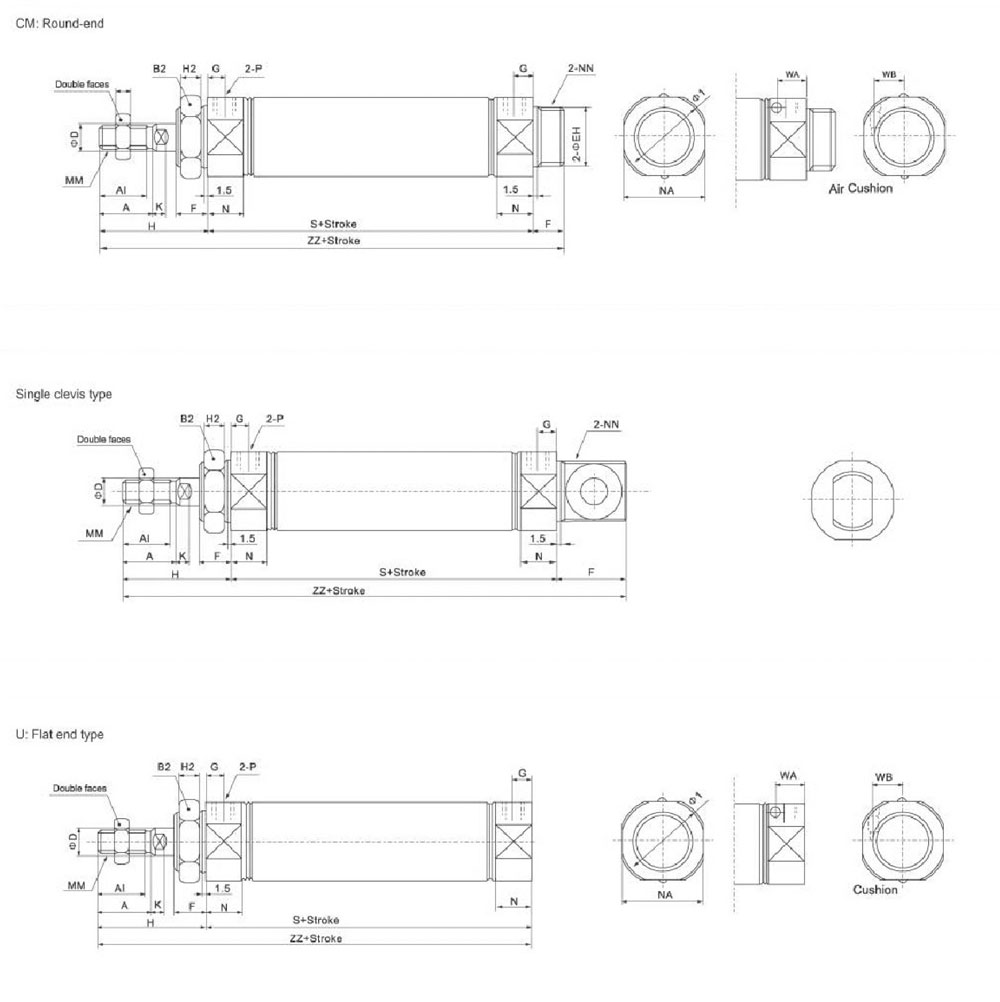

Dimension |
|||||||||||
Bore size (mm) |
A |
A1 |
B1 |
B2 |
D |
E |
F |
G |
H |
H1 |
H2 |
16 |
18 |
15.5 |
13 |
26 |
8 |
20 |
13 |
8 |
41 |
5 |
8 |
20 |
18 |
15.5 |
13 |
26 |
8 |
20 |
13 |
8 |
41 |
5 |
8 |
25 |
22 |
19.5 |
17 |
32 |
10 |
26 |
13 |
8 |
45 |
6 |
8 |
32 |
22 |
19.5 |
17 |
32 |
12 |
26 |
13 |
8 |
45 |
6 |
8 |
40 |
24 |
21 |
22 |
41 |
14 |
32 |
16 |
11 |
50 |
8 |
10 |
Dimension |
|||||||||||
Bore size (mm) |
K |
L |
I |
K |
N |
NA |
P |
S |
ZZ |
WA |
WB |
16 |
M6×1 |
M20×1.5 |
28 |
5 |
15 |
24 |
Rcm5 |
62 |
116 |
11.5 |
8.5 |
20 |
M8×1.25 |
M20×1.5 |
28 |
5 |
15 |
24 |
Rc1/8 |
62 |
116 |
11.5 |
8.5 |
25 |
M10×1.25 |
M26×1.5 |
33.5 |
5.5 |
15 |
30 |
Rc1/8 |
62 |
120 |
11.5 |
10 |
32 |
M10×1.25 |
M26×1.5 |
37.5 |
5.5 |
15 |
34.5 |
Rc1/8 |
62 |
122 |
11.5 |
11.5 |
40 |
M14×1.5 |
M32×2.0 |
46.5 |
7 |
21.5 |
42.5 |
Rc1/4 |
88 |
154 |
14 |
15 |
Applicable auto switch |
|||||
Type bore size |
16 |
20 |
25 |
25 |
40 |
Auto switch |
CS1-F CS1-U |
||||
Auto switch mounting base |
MA-16 |
MA-20 |
MA-25 |
MA-25 |
MA-40 |
Specification |
|||||
Bore size(mm) |
16 |
20 |
25 |
32 |
40 |
Action |
Double acting type |
||||
Fluid |
Air(filtered through 40u filter element) |
||||
Operating pressure |
0.1-0.9Mpa(1-9kgf/cm2) |
||||
Proof pressure |
1.35Mpa(13.5kgf/cm2) |
||||
Ambient & fluid temperature |
-5-70oc |
||||
Cushion |
Without cushion |
||||
Port size |
M5 |
1/8" |
1/4" |
||
Body material |
Stainless steel |
