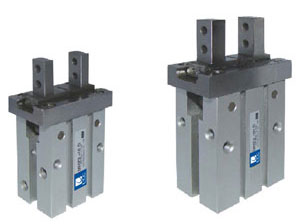

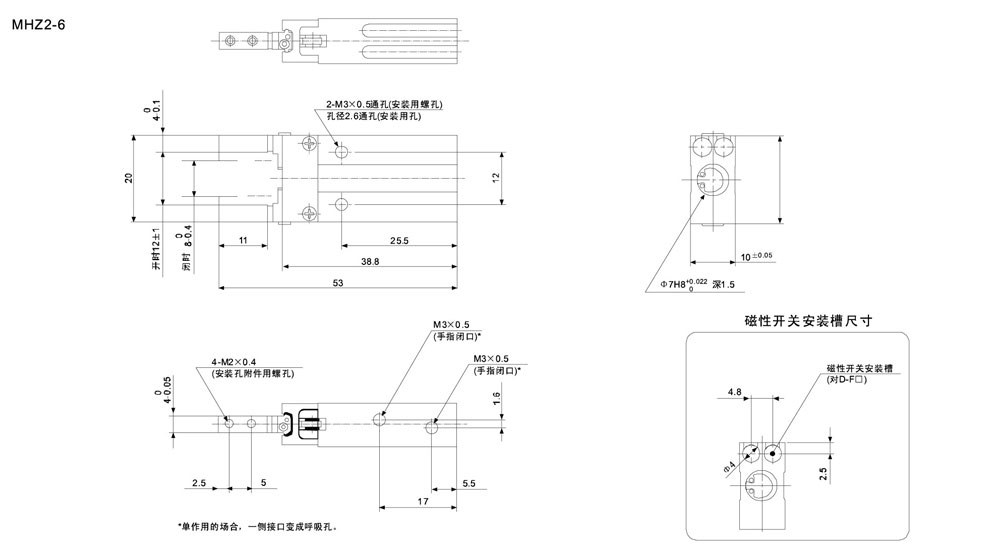

Gripper Cylinder MHZ2 Series

Specification

Bore size (mm)

6

10

16

20

25

32

40

Fluid

Air

Action type

Double /single acting type (normally open/close)

Max. operating pressure

0..7

Max. operating

pressure

Double acting

0.15

0.2

0.1

Single acting

0.3

0.35

0.25

Ambient & fluid temperature

-10-60^OC

Maximum operating frequency

180c.p.m.

60c.p.m.

Repeat accuracy

±0.01

±0.02

Built-in magnets

With(standard)

Recommended lubrication

Turbine No.1 oil (ISO VG 32)

Port size (mm)

M3×0.5

M3×0.8

Specification

model

Bore size(mm)

acting

Hold power (N)

Weight (g)

open

close

MHZ2-6D

6

Double-acting

6.1

3.3

27

MHZ2-10D

10

17

9.8

55

MHZ2-16D

16

40

30

115

MHZ2-20D

20

66

42

235

MHZ2-25D

25

104

65

430

MHZ2-32D

32

193

158

715

MHZ2-40D

40

318

254

1275

MHZ2-6D

6

Single-acting   normally open

-

1.9

27

MHZ2-10D

10

-

6.3

55

MHZ2-16D

16

-

24

115

MHZ2-20D

20

-

28

240

MHZ2-25D

25

-

45

435

MHZ2-32D

32

-

131

760

MHZ2-40D

40

-

137

1370

MHZ2-6D

6

Single-acting   normally close

3.7

-

27

MHZ2-10D

10

12

-

55

MHZ2-16D

16

31

-

115

MHZ2-20D

20

56

-

240

MHZ2-25D

25

83

-

430

MHZ2-32D

32

161

-

760

MHZ2-40D

40

267

-

1370
