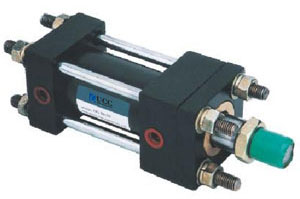

Pneumatic Hydraulic Cylinder HO series
|
Order code |
|||||
|
HO |
- |
50*50 |
- |
- |
FA |
|
Series code HO: double acting (pull rod type) HOD: double rod Standard type HOJ: double rod Adjustable type |
|
Bore*stoke |
Magnet Nil: without S: with |
|
Mounting type Nil: basic type CA: single clevis type CB: double clevis type FA: front flange type FB: rear flange type LB: foot bracket type TC: center trunnion type TC-M: center trunnion type With foot |
|
Specification |
||||||||||||||||
|
Bore |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
||||||||
|
Piston diameter |
25 |
30 |
35 |
40 |
50 |
50 |
60 |
100 |
||||||||
|
Action model |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
|
Pressure area(cm2) |
12.56 |
7.65 |
19.62 |
12.55 |
31.16 |
21.54 |
50.24 |
37.68 |
78.50 |
58.88 |
122.66 |
94.40 |
200.96 |
150.72 |
314.00 |
235.50 |
|
Working pressure (140kgf/cm2) |
1758 |
1071 |
2746 |
1757 |
4362 |
3015 |
7034 |
5275 |
10995 |
8243 |
171172 |
13216 |
28134 |
21100 |
43960 |
32970 |
|
Dimension |
||||||||||||||
|
Model |
φA |
φB |
C |
□D |
□DE |
E |
F |
G |
H |
N |
K |
S |
Z |
PT |
|
Φ40 |
40 |
25 |
M22*1.5 |
65 |
45 |
40 |
20 |
17 |
33 |
28 |
M10 |
50 |
188 |
ZG3/8 |
|
Φ50 |
50 |
30 |
M26*1.5 |
80 |
56 |
40 |
20 |
17 |
38 |
30 |
M12 |
55 |
200 |
ZG3/8 |
|
Φ63 |
50 |
35 |
M30*1.5 |
95 |
65 |
45 |
20 |
17 |
38 |
30 |
M14 |
55 |
205 |
ZG3/8 |
|
Φ80 |
60 |
40 |
M30*1.5 |
110 |
80 |
45 |
20 |
20 |
38 |
35 |
M16 |
74 |
232 |
ZG1/2 |
|
Φ100 |
80 |
50 |
M40*2 |
131 |
102 |
55 |
25 |
20 |
41 |
37 |
M18 |
84 |
262 |
ZG1/2 |
|
Φ125 |
90 |
60 |
M50*2 |
162 |
122 |
70 |
35 |
28 |
57 |
47 |
M24 |
84 |
321 |
ZG3/4 |
|
Φ160 |
110 |
80 |
M70*2 |
210 |
153 |
80 |
35 |
30 |
60 |
50 |
M27 |
90 |
345 |
ZG3/4 |
|
Φ200 |
135 |
100 |
M90*2 |
261 |
193 |
120 |
40 |
40 |
65 |
60 |
M33 |
120 |
445 |
1" |
