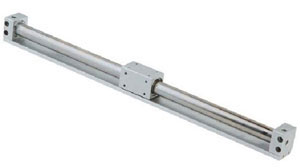

Rodless Air Cylinder CY1R Series





Order code

CY1R

-

25×300

Series code



Bore×stroke



Specification

Bore size(mm)

6

10

50

63

Fluid

Air(filtered through 40u filter element)

Acton

Double acting type

Max. operating pressure

0.7Mpa

Min. operating pressure

0.18Mpa

Ambient& fluid temperature

-10~60oc(no freezing)

Piston speed

50~400mm/s

Cushion

Both ends rubber cushion

Stroke length tolerance(mm)

0-250+1.0/0 251-1000+1.4/0  1001~+1.8/0

lubrication

Not required

Port size

M5×0.8

1/8”

1/4”

Mounting orientation

Free

Body material

Stainless steel



Stroke

Bore size(mm)

Standard stroke(mm)

Maximum stroke (mm)

Allowable stroke(mm0

6

50

100

150

200























300

300

10

50

100

150

200

250

300



















500

500

50

50

100

150

200

250

300

350

400

450

500

600

700

800

900

1000

2000

1500

63



100

150

200

250

300

350

400

450

500

600

700

800

900

1000

2000

1500



Applicable auto switch

Type bore size

6

10

50

63

Auto switch

D-A73L

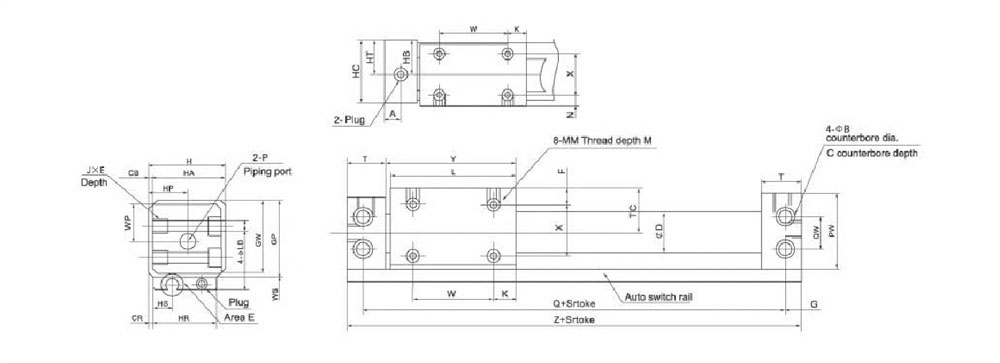

Dimension

model



A

B

C

CB

CR

D

F

G

GP

GW

H

HA

HC

HP

HR

HS

HT

J×K

K

CYIR6

-300

9

6.5

3.2

2

0.5

7.6

5.5

4

20

18.5

17

17

18

9

17

6

7

M4×0.7×6

7

CYIR10

-500

9

6.5

3.2

2

0.5

12

6.5

4

27

25.5

24

24

24

14

24

5

14

M4×0.7×6

9

CYIR50

-2000

14

14

8.3

5

2

53

17

8.5

83

81.5

80

80

45

45

80

9

45

M10×1.5×15

25

CYIR63

-2000

15

14

8.3

5

3

66

18

8.5

95

93.5

92

92

51

51

90

9.5

52

M10×1.5×15

24



Dimension

model



L

LD

M

MM

N

P

PW

Q

QW

T

W

WS

X

Y

Z

HB

TC

WP

CYIR6

-300

34

3.5

3.5

M3×0.5

3.5

M5×0.8

19

64

10

17.5

20

6

10

35.5

72

10.5

10.5

9.5

CYIR10

-500

38

3.5

4

M3×0.5

4.6

M5×0.8

26

68

14

17.5

20

8

15

39.5

76

14

14

13

CYIR50

-2000

110

8.6

10

M8×1.25

15

RC1/4

82

159

48

30

60

10

50

113

176

45

42

41

CYIR63

-2000

118

8.6

10

M8×1.25

16

RC1/4

94

171

60

32

70

10

60

121

188

51

48

47

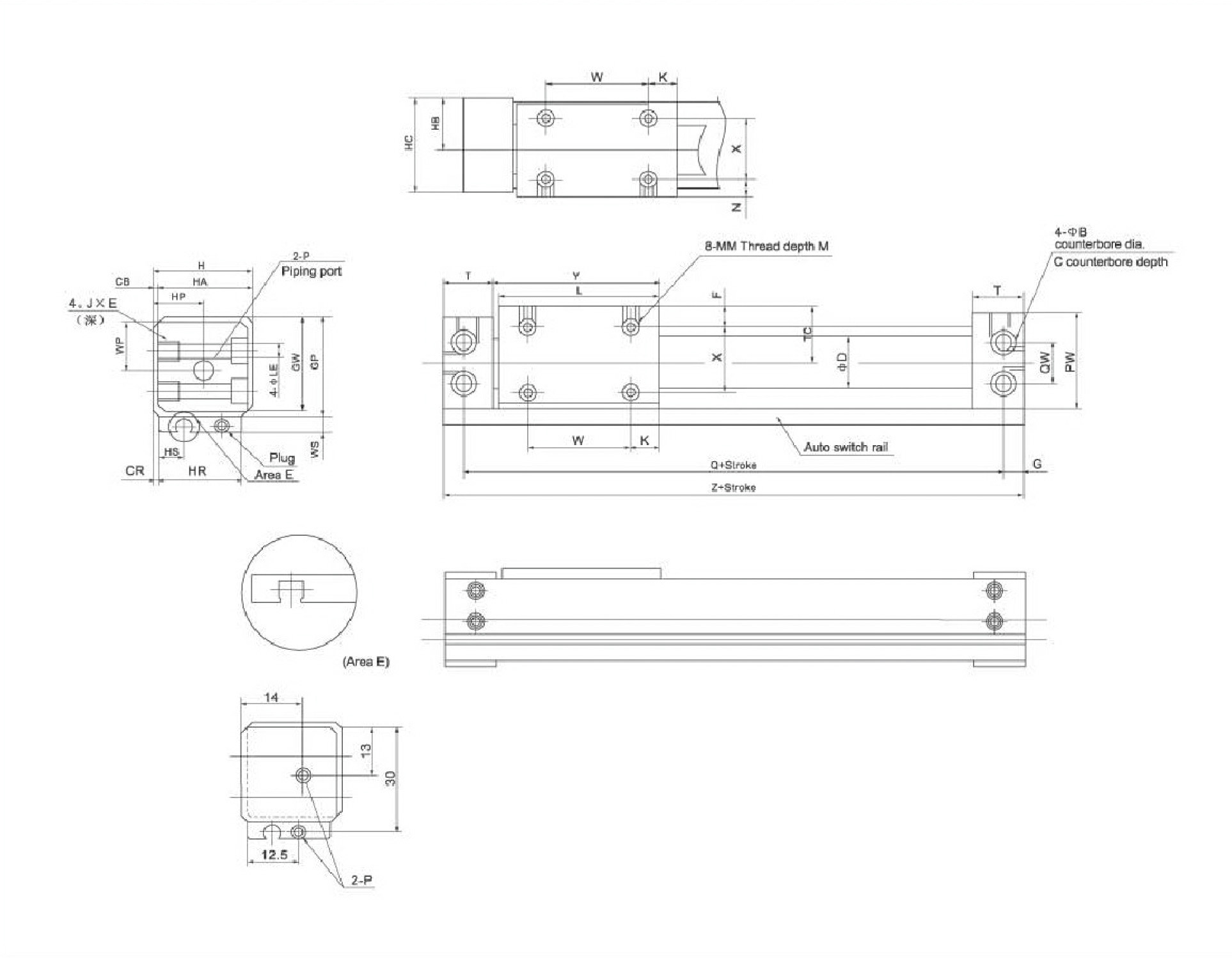

Dimension

Model



B

C

CB

CR

D

F

G

GP

GW

H

HA

HC

HP

HS

HT

J×K

K

CY1R10

-500

6.5

3.2

3.2

2

12

6.5

4

27

25.5

24

24

25

-

5

-

M4×0.7×6

9

CY1R50

-2000

14

8.2

8.2

5

53

17

8.5

83

81.5

80

80

84

32

9

56

M10×1.5×15

25

CY1R63

-2000

14

8.2

8.2

5

66

18

8.5

95

93.5

92

92

96

35

9.5

63.5

M10×1.5×15

24



Dimension

Model



L

LD

M

MM

N

P

PW

Q

QW

W

WS

X

Y

Z

HB

TC

WP

CY1R10

-500

38

3.5

4

M3×0.5

4.6

M5×0.8

26

68

14

20

8

15

39.5

76

14

14

13

CY1R50

-2000

110

8.6

10

M8×1.25

15

RC1/4

82

159

48

60

10

50

113

176

45

42

41

CY1R63

-2000

118

8.6

10

M8×1.25

16

RC1/4

94

171

60

70

10

60

121

188

51

48

47
