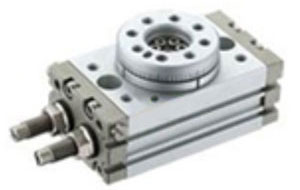

Pneumatic Rotary Cylinder MSQ Series
|
Order code |
||||
|
MSQ |
B |
- |
10×70 |
A |
|
Series code |
Basic type |
|
bore×stroke 10×70 20×100 30×200 50 |
A: with Adjustable angle screw R: with shock absorber |
|
Specification |
||||
|
Model |
MSQB10□ |
MSQB20□ |
MSQB30□ |
MSQB50□ |
|
Fluid |
Air |
|||
|
Acting mode |
Double acting |
|||
|
Maximum working-with adjustable screw |
1Mpa(10.2kgf/cm2) |
|||
|
Pressure with shock absorber |
0.6Mpa(6.1kgf/cm2) |
|||
|
Minimum working-pressure |
0.2Mpa (2kgf/cm2) |
0.1Mpa (kgf/cm2) |
||
|
Ambient and medium temperature |
0-60oc |
|||
