Standard Air Cylinder DNC Series (Standard ISO6431)

Order code

DNC

63×50

-

PPV

A

S2

Series code

DMC: basic type

JMC: foot bracket type

FMC: front & rear flange type

SMCB: double clevis type

SNCL: single clevis type

bore×stroke

NIL: without cushion

PPV: with cushion

Built-in magnets

Nil: without

A: with

Nil: basic type

S2:double piston rod

S3:double piston rod

(one side adjustable)

Specification
Bore size(mm)	32	40	50	63	80	100
Action	Double acting type
Fluid	Air(filtered through40u filter element)
Operating pressure	0.1-0.9Mpa(1-9kgf/cm²)
Proof pressure	1.35Mpa(13.5kgf/cm²)
Ambient & fluid temperature	-5-70^oc
Cushion	Air cushion
Cushion stroke(mm)	24				32
Port size	1/8"	1/4"		3/8"		1/2"
Body material;	Aluminum alloy

Stroke
Bore size(mm)	Standard stroke(mm)																		Maximum stroke(mm)	Allowable stroke(mm)
32	25	50	75	100	125	150	175	200	250	300	350	400	500						1000	2000
40	25	50	75	100	125	150	175	200	250	300	350	400	500	600	700	800			1200	2000
50	25	50	75	100	125	150	175	200	250	300	350	400	500	600	700	800	900	1000	1200	2000
63	25	50	75	100	125	150	175	200	250	300	350	400	500	600	700	800	900	1000	1500	2000
80	25	50	75	100	125	150	175	200	250	300	350	400	500	600	700	800	900	1000	1500	2000
100	25	50	75	100	125	150	175	200	250	300	350	400	500	600	700	800	900	1000	1500	2000
125	25	50	75	100	125	150	175	200	250	300	350	400	500	600	700	800	900	1000	1500	2000
160	25	50	75	100	125	150	175	200	250	300	350	400	500	600	700	800	900	1000	1500	2000

Applicable Auto Switch
Type bore size	32	40	50	63	80	100	125	160
Auto switch
Auto switch mounting base

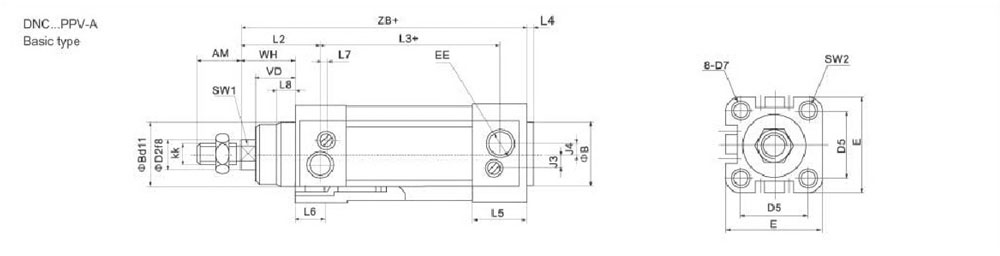

Dimension
Bore size(mm)	AM	E	D2	D5	D7	E	EE(G)	J3	J4	KK	L2	L3	L4	L5	L6	L7	L8	SW1	SW2	VD	WH	ZB
32	22	30	12	32.5	M6	45	1/8	6	5.2	M10×1.25	41.6	62.8	4	25.1	16	3.3	10	10	6	18	26	120
40	24	35	16	38	M6	54	1/4	8	6	M10×1.25	44	77	4	29.6	16	3.8	10.5	13	6	21.5	30	135
50	32	40	20	46.5	M8	64	1/4	10	8.5	M16×1.5	51	78	4	29.6	17	5.1	11.5	17	8	28	37	143
63	32	45	20	56.5	M8	75	3/8	12.4	10	M16×1.5	54	87	4	35.6	17	6.6	15	17	8	28.5	37	158
80	40	45	25	72	M10	93	3/8	12.5	8	M20×1.5	62.5	95.2	4	35.9	17	10.5	15.7	22	10	34.7	46	174
100	40	55	25	89	M10	110	1/2	11.8	10	M20×1.5	69.8	100.4	4	38.8	100	8	19.2	22	10	38.2	51	189

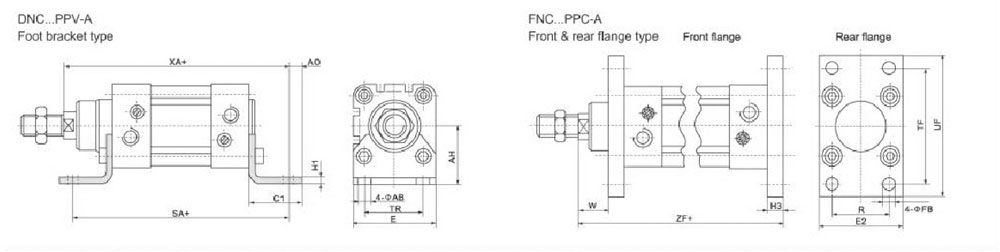

Dimension
Bore size(mm)	AB	AH	AO	C1	E	H1	SA	TR	XA	E2	H13	H3	R	TF	UF	W	ZF
32	7	32	6.5	30.5	45	5	142	32	144	50	7	10	32	64	80	16	130
40	10	36	9	37	54	5	161	36	163	55	9	10	36	72	90	20	145
50	10	45	10.5	41.5	64	6	170	45	175	65	9	12	45	90	110	25	155
63	10	50	12.5	44.5	75	6	185	50	190	75	9	12	50	100	125	25	170
80	12	63	15	56	93	6	210	63	215	100	12	16	63	126	154	30	190
100	14.5	71	17.5	58.5	110	6	220	75	230	120	14	16	75	150	186	35	205

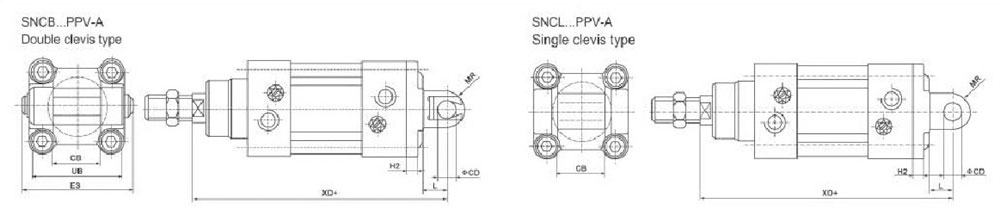

Dimension
Bore size(mm)	CB	BD	E3	H2	L	MR	UB	XD
32	26	10	55	6	13	10	45	142
40	28	12	63	6	16	12	52	160
50	32	12	71	7	16	12	60	170
63	40	16	83	7	21	16	70	190
80	50	16	103	10.5	22	16	90	210
100	60	20	127	10.5	27	20	110	230
