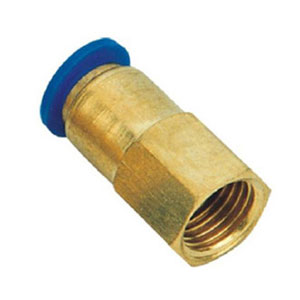

G Screw Push-in Fittings SPCF-G
|
Model |
|||||
|
SPCF4-G01 SPCF4-G02 |
SPCF6-G01 SPCF6-G02 SPCF6-G03 SPCF6-G04 |
SPCF8-G01 SPCF8-G01 SPCF8-G02 SPCF8-G03 SPCF8-G04 |
SPCF10-G01 SPCF10-G02 SPCF10-G03 SPCF10-G04 |
SPCF12-G02 SPCF12-G04 |
SPCF16-G04 SPCF16-G03 SPCF16-G04 |
|
How to order |
|||
|
SPCF |
8 |
- |
G02 |
|
Series code |
Tube size 4 6 8 10 12 |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|
|
Media |
Air |
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Ambient &fluid temperature |
0-60oc |
|
Recommended tubes |
Urethane tube, nylon tube |
|
Material |
Brass |
