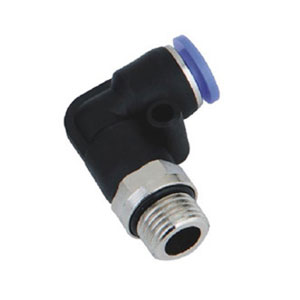

G Screw Push-in Fittings SPL-G
|
Dimension |
||||||||
|
Bore size(mm) |
C |
X |
D |
H |
L |
K |
O |
R |
|
12 |
9 |
10.5 |
6 |
M5×0.8 |
14.5 |
5 |
M4×0.7 |
7 |
|
16 |
10 |
12 |
8 |
M6×1.0 |
15.5 |
6 |
M7×0.7 |
7 |
|
20 |
12 |
14 |
10 |
M8×1.25 |
18.5 |
8 |
M6×1.0 |
10 |
|
25 |
15 |
17.5 |
12 |
M10×1.25 |
22.5 |
10 |
M6×1.0 |
10 |
|
32 |
20.5 |
23.5 |
16 |
M14×1.5 |
28.5 |
14 |
M6×1.0 |
10 |
|
40 |
20.5 |
23.5 |
16 |
M14×1.5 |
28.5 |
14 |
M6×1.0 |
10 |
|
50 |
26 |
28.5 |
20 |
M18×1.5
|
33.5 |
17 |
M8×1.25
|
14 |
|
63 |
26 |
28.5 |
20 |
M18×1.5
|
33.5 |
17 |
M10×1.5
|
18 |
|
80 |
32.5 |
35.5 |
25 |
M22×1.5
|
43.5 |
22 |
M12×1.75
|
22 |
|
100 |
32.5 |
35.5 |
30 |
M26×1.5 |
43.5 |
27 |
M12×1.75 |
22 |
|
How to order |
|||
|
SPL |
8 |
- |
G02 |
|
Seiflock |
Tube size 4 6 8 10 12 |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|
|
Media |
Air |
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Ambient &fluid temperature |
0-60oc |
|
Recommended tubes |
Urethane tube nylon tube |
|
Material |
Brass |
