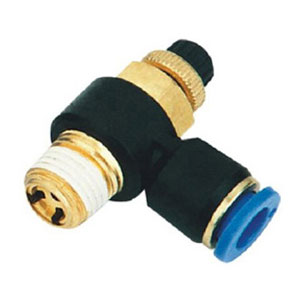

One Touch Fitting JSC
|

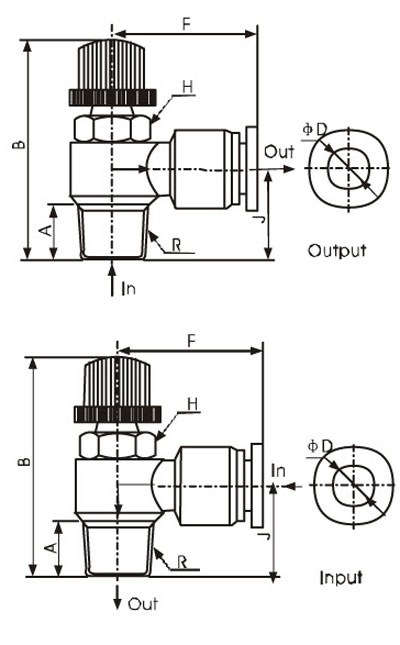

Dimension |
||||||||
|
Model |
|
ΦD |
R |
A |
B |
H |
F |
J |
|
JSC4-M5 |
JSC4-M |
4 |
M5 |
4 |
28 |
8 |
24 |
11.4 |
|
JSC4-01 |
JSC4 |
4 |
R1/8 |
9 |
25 |
12 |
24.5 |
15.6 |
|
JSC4-02 |
JSC4 |
4 |
R1/4 |
12 |
43 |
15 |
25 |
19.2 |
|
JSC6-M5 |
JSC6-M |
6 |
M5 |
4 |
28 |
8 |
24 |
11.4 |
|
JSC6-01 |
JSC6 |
6 |
R1/8 |
9 |
25 |
12 |
24.5 |
15.6 |
|
JSC6-02 |
JSC6 |
6 |
R1/4 |
12 |
43 |
15 |
25 |
19.2 |
|
JSC6-03 |
JSC6 |
6 |
R3/8 |
12 |
46 |
19 |
29.2 |
20.6 |
|
JSC6-04 |
JSC6 |
6 |
R1/2 |
13 |
50 |
22 |
36 |
23.4 |
|
JSC8-01 |
JSC8 |
8 |
R1/8 |
9 |
25 |
12 |
24.5 |
15.6 |
|
JSC8-02 |
JSC8 |
8 |
R1/4 |
12 |
43 |
15 |
25 |
19.2 |
|
JSC8-03 |
JSC8 |
8 |
R3/8 |
12 |
46 |
19 |
29.2 |
20.6 |
|
JSC8-04 |
JSC8 |
8 |
R1/2 |
13 |
50 |
22 |
36 |
23.4 |
|
JSC10-01 |
JSC10 |
10 |
R1/8 |
9 |
25 |
12 |
24.5 |
15.6 |
|
JSC10-02 |
JSC10 |
10 |
R1/4 |
12 |
43 |
15 |
25 |
19.2 |
|
JSC10-03 |
JSC10 |
10 |
R3/8 |
12 |
46 |
19 |
29.2 |
20.6 |
|
JSC10-04 |
JSC10 |
10 |
R1/2 |
13 |
50 |
22 |
36 |
23.4 |
|
JSC12-02 |
JSC12 |
12 |
R1/8 |
12 |
43 |
15 |
25 |
19.2 |
|
JSC12-03 |
JSC12 |
12 |
R3/8 |
12 |
46 |
19 |
29.2 |
20.6 |
|
JSC112-04 |
JSC112-04 |
12 |
R1/2 |
13 |
50 |
22 |
36 |
23.4 |
