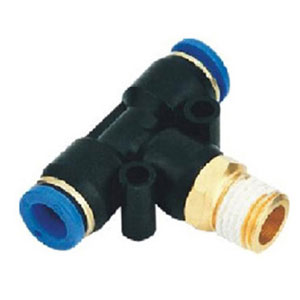

One Touch Fitting SPB
|

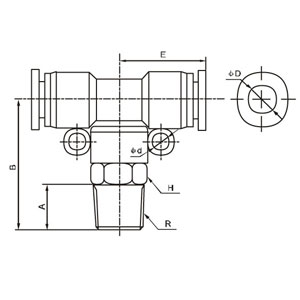

Model |
ΦD |
R |
A |
B |
E |
H2 |
Φd |
|
SPB5/32-M5 |
4 |
M5 |
4.5 |
25.4 |
18.6 |
10 |
/ |
|
SPB5/32-01 |
4 |
R1/8 |
7 |
25.4 |
18.6 |
10 |
/ |
|
SPB5/32-02 |
4 |
R1/4 |
9 |
27.8 |
18.6 |
14 |
/ |
|
SPB1/4-M5 |
6 |
M5 |
4.5 |
26.8 |
20.8 |
12 |
3.5 |
|
SPB1/4-01 |
6 |
R1/8 |
7 |
37.6 |
20.8 |
12 |
3.5 |
|
SPB1/4-02 |
6 |
R1/4 |
9 |
30 |
20.8 |
14 |
3.5 |
|
SPB1/4-03 |
6 |
R3/8 |
10 |
30.6 |
20.8 |
17 |
3.5 |
|
SPB1/4-04 |
6 |
R1/2 |
11 |
32.5 |
20.8 |
21 |
3.5 |
|
SPB5/16-01 |
8 |
R1/8 |
8 |
31.5 |
22.9 |
14 |
4.5 |
|
SPB5/16-02 |
8 |
R1/4 |
10 |
33 |
22.9 |
14 |
4.5 |
|
SPB5/16-03 |
8 |
R3/8 |
10 |
33.6 |
22.9 |
17 |
4.5 |
|
SPB5/16-04 |
8 |
R1/2 |
11 |
35 |
22.9 |
21 |
4.5 |
|
SPB3/8-01 |
10 |
R1/8 |
8 |
37 |
27.8 |
17 |
4.5 |
|
SPB3/8-02 |
10 |
R1/4 |
10 |
38 |
27.8 |
17 |
4.5 |
|
SPB3/8-03 |
10 |
R3/8 |
10 |
38 |
27.8 |
17 |
4.5 |
|
SPB3/8-04 |
10 |
R1/2 |
11 |
39 |
27.8 |
21 |
4.5 |
|
SPB1/2-01 |
12 |
R1/8 |
8 |
37.5 |
29.5 |
19 |
5 |
|
SPB1/2-02 |
12 |
R1/4 |
10 |
40 |
29.5 |
19 |
5 |
|
SPB1/2-03 |
12 |
R3/8 |
10 |
40 |
29.5 |
19 |
5 |
|
SPB1/2-04 |
12 |
R1/2 |
11 |
41 |
29.5 |
21 |
5 |
|
Order code |
|||
|
SPB |
1/4 |
- |
RO2 |
|
Series code |
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
01:1/8" 02:1/4" 03:3/8" 04:1/2" |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
code |
01 |
02 |
03 |
04 |
|
Size |
1/8 |
1/4 |
3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
