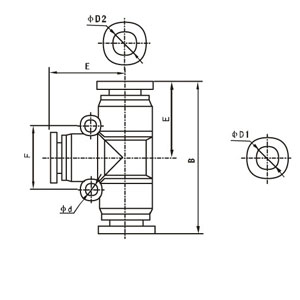

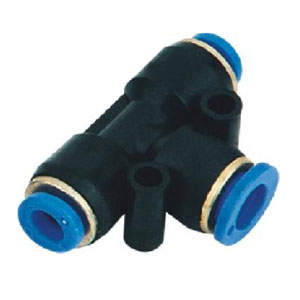

One Touch Fitting SPEND
|
Model |
ΦD1 |
ΦD2 |
B |
E |
F |
Φd |
|
SPEND1/4-5/32 |
6 |
4 |
40 |
20 |
16 |
3.5 |
|
SPEND5/16-1/4 |
8 |
6 |
45 |
23.2 |
20 |
4.5 |
|
SPEND3/8-5/16 |
10 |
8 |
55 |
28.3 |
24 |
4.5 |
|
SPEND1/2-3/8 |
12 |
10 |
58 |
29 |
27.8 |
5 |
|
|
16 |
12 |
68 |
34.5 |
33.5 |
4 |
|
SPEND5/16-5/32 |
8 |
4 |
44.5 |
23 |
19.7 |
4.5 |
|
SPEND3/8-1/4 |
10 |
6 |
54.5 |
28 |
24 |
4 |
|
SPEND1/ |
12 |
8 |
56 |
29.3 |
27.8 |
5 |
|
Order code |
||
|
SPEND |
- |
1/4 |
|
Series code |
|
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
