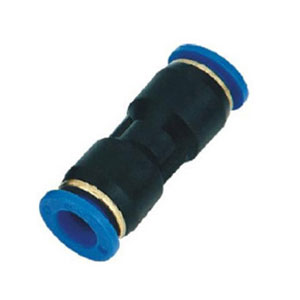

One Touch Fitting SPG
|
Model |
ΦD1 |
ΦD2 |
B |
|
SPG1/4-5/32 |
6 |
4 |
35 |
|
SPG5/16-1/4 |
8 |
6 |
35.5 |
|
SPG3/8-5/16 |
10 |
8 |
38 |
|
SPEND1/2-3/8 |
12 |
10 |
47 |
|
|
16 |
12 |
47.5 |
|
SPG5/16-5/32 |
8 |
4 |
47.5 |
|
SPG3/8-1/4 |
10 |
6 |
67 |
|
SPG1/ |
12 |
8 |
67 |
|
How to order |
||
|
SPG |
- |
1/4 |
|
Series code |
|
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
|
Material |
PU |
|
