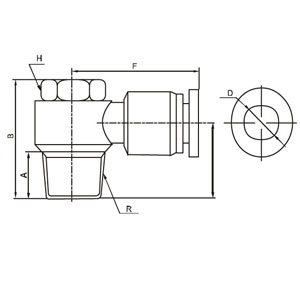

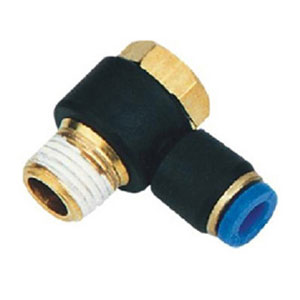

One Touch Fitting SPH
|
Model |
ΦD |
R |
A |
B |
H |
F |
J |
|
SPH5/32-M5 |
4 |
M5 |
4 |
19 |
8 |
24.2 |
12.7 |
|
SPH5/32-01 |
4 |
R1/8 |
9 |
25 |
12 |
24.2 |
15.6 |
|
SPH5/32-02 |
4 |
R1/4 |
11 |
28 |
15 |
24.2 |
19.2 |
|
SPH1/4-M5 |
6 |
M5 |
4 |
19 |
8 |
24.2 |
12.7 |
|
SPH1/4-01 |
6 |
R1/8 |
9 |
25 |
12 |
24.2 |
15.6 |
|
SPH1/4-02 |
6 |
R1/4 |
11 |
28 |
15 |
24.2 |
19.2 |
|
SPH1/4-03 |
6 |
R3/8 |
11 |
33 |
19 |
28.8 |
20 |
|
SPH1/4-04 |
6 |
R1/2 |
13 |
39 |
22 |
36 |
24.8 |
|
SPH5/16-01 |
8 |
R1/8 |
9 |
25 |
12 |
24.2 |
15.6 |
|
SPH5/16-02 |
8 |
R1/4 |
11 |
28 |
15 |
24.2 |
19.2 |
|
SPH5/16-03 |
8 |
R3/8 |
11 |
33 |
19 |
28.8 |
20 |
|
SPH5/16-04 |
8 |
R1/2 |
13 |
39 |
22 |
36 |
24.8 |
|
SPH3/8-01 |
10 |
R1/8 |
9 |
25 |
12 |
24.2 |
15.6 |
|
SPH3/8-02 |
10 |
R1/4 |
11 |
28 |
15 |
24.2 |
19.2 |
|
SPH3/8-03 |
10 |
R3/8 |
11 |
33 |
19 |
28.8 |
20 |
|
SPH3/8-04 |
10 |
R1/2 |
13 |
39 |
22 |
36 |
24.8 |
|
SPH1/2-02 |
12 |
R1/4 |
11 |
28 |
15 |
24.2 |
19.2 |
|
SPH1/2-03 |
12 |
R3/8 |
11 |
33 |
19 |
28.8 |
20 |
|
SPH1/2-04 |
12 |
R1/2 |
13 |
39 |
22 |
36 |
24.8 |
|
Order code |
|||
|
SPH |
1/4 |
- |
RO2 |
|
Series code |
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
01:1/8" 02:1/4" 03:3/8" 04:1/2" |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
code |
01 |
02 |
03 |
04 |
|
Size |
1/8 |
1/4 |
3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
|
Material |
PU |
|
