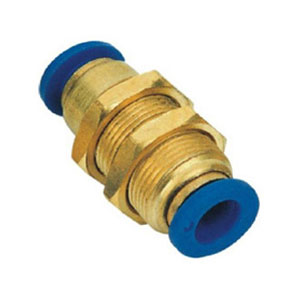

One Touch Fitting SPM
|
Model |
ΦD |
M |
B |
H |
|
SPM5/32 |
4 |
M12*1.0 |
34.5 |
14 |
|
SPM1/4 |
6 |
M14*1.0 |
37 |
17 |
|
SPM5/16 |
8 |
M16*1.0 |
37 |
19 |
|
SPM3/8 |
10 |
M20*1.0 |
45 |
24 |
|
SPM1/2 |
12 |
M22*1.0 |
46.4 |
27 |
|
|
16 |
M28*1.0 |
59 |
32 |
|
How to order |
||
|
SPM |
- |
1/4 |
|
Seiflock |
|
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube nylon tube |
|
|
Material |
pu |
|
