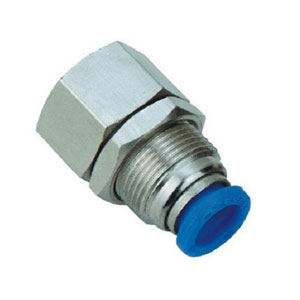

One Touch Fitting SPMF
|
Model |
ΦD |
R |
A |
B |
H |
E |
Φd |
|
SPLF5/32-M5 |
4 |
M5 |
|
|
|
17.6 |
/ |
|
SPLF5/32-01 |
4 |
R1/8 |
|
|
|
17.6 |
/ |
|
SPLF5/32-02 |
4 |
R1/4 |
10 |
25 |
17 |
17.6 |
/ |
|
SPLF1/4-M5 |
6 |
M5 |
|
|
|
|
3.5 |
|
SPLF1/4-01 |
6 |
R1/8 |
9 |
26.2 |
12 |
20.6 |
3.5 |
|
SPLF1/4-02 |
6 |
R1/4 |
11 |
29.3 |
15 |
20.6 |
3.5 |
|
SPLF1/4-03 |
6 |
R3/8 |
11 |
29.3 |
17 |
20.6 |
3.5 |
|
SPLF1/4-04 |
6 |
R1/2 |
13 |
29.3 |
19 |
20.6 |
3.5 |
|
SPLF5/16-01 |
8 |
R1/8 |
9 |
28.8 |
14 |
22.6 |
4.5 |
|
SPLF5/16-02 |
8 |
R1/4 |
11 |
31.6 |
17 |
22.6 |
4.5 |
|
SPLF5/16-03 |
8 |
R3/8 |
11 |
33.3 |
19 |
22.6 |
4.5 |
|
SPLF5/16-04 |
8 |
R1/2 |
13 |
39.5 |
24 |
27.4 |
4.5 |
|
SPLF3/8-01 |
10 |
R1/8 |
9 |
37.2 |
17 |
28.8 |
4.5 |
|
SPLF3/8-03 |
10 |
R1/4 |
11 |
37.2 |
17 |
28.8 |
4.5 |
|
SPLF3/8-03 |
10 |
R3/8 |
11 |
38 |
19 |
28.8 |
4.5 |
|
SPLF3/8-04 |
10 |
R1/2 |
|
|
|
28.8 |
4.5 |
|
SPLF1/2-01 |
12 |
R1/4 |
11 |
36 |
19 |
32.2 |
5 |
|
SPLF1/2-02 |
12 |
R3/8 |
11 |
39 |
19 |
32.2 |
5 |
|
SPLF1/2-03 |
12 |
R1/2 |
13 |
41 |
24 |
32.2 |
5 |
|
Model |
|||||
|
SPMF-M5 SPMF4-01 SPMF4-02 |
SPMF6-M SPMF6-01 SPMF6-02 SPMF6-04 |
SPMF8-01 SPMF8-02 SPMF8-03 SPMF8-04 |
SPMF10-01 SPMF10-02 SPMF10-03 SPMF10-04 |
SPMF12-01 SPMF12-02 SPMF12-03 |
SPMF14-01 SPMF14-02 SPMF14-03 SPMF14-04 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube ,nylon tube |
|
|
Material |
pu |
|
