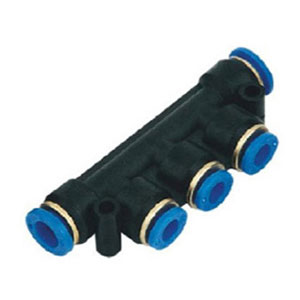

One Touch Fitting SPW
|

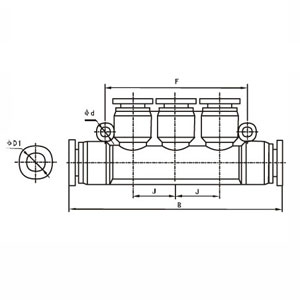

Model |
ΦD |
B |
F |
J |
Φd |
|
SPW5/32 |
4 |
61.5 |
36.8 |
12 |
2.5 |
|
SPW/4 |
6 |
80 |
54.8 |
17.5 |
4 |
|
SPW5/16 |
8 |
80 |
54.8 |
17.5 |
4 |
|
SPW3/8 |
10 |
96 |
62.5 |
20.4 |
4 |
|
SPW1/2 |
12 |
112 |
71 |
23 |
4 |
|
Order code |
||
|
SPW |
- |
1/4 |
|
Series code |
|
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
|
Material |
PU |
|
