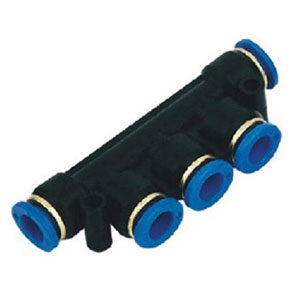

One Touch Fitting SPWG

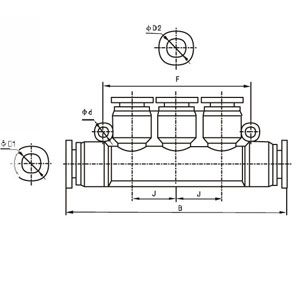

Model

ΦD1

ΦD2

B

F

J

Φd

SPWG1/4-5/32

6

4

79

54.8

17.7

4

SPWG5/16-1/4

8

6

80

54.8

17.7

4

SPWG3/8-5/16

10

8

96

62.4

20.2

4

SPWG1/2-3/8

12

10

112

71

23

4

SPWG5/16-5/32

8

4

81

56.5

18

4.5

SPWG3/8-1/4

10

6

96

62.4

20.2

4

SPWG1/2-5-16

12

8

112

71

23

4

code

5/32

3/16

1/4

5/16

3/8

1/2

DIA

Φ5/32

Φ3/16

Φ1/4

Φ5/16

Φ3/8

Φ1/2
