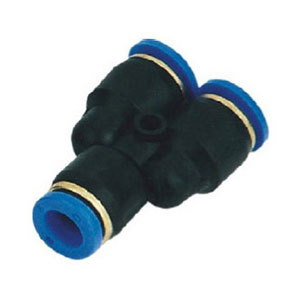

One Touch Fitting SPY
|

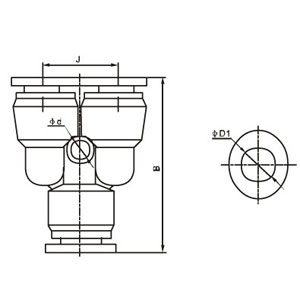

Dimension |
ΦD |
B |
J |
Φ |
|
SPY5/32 SPY-4 |
4 |
38 |
11.6 |
2.5 |
|
SPY1/4 SPY-6 |
6 |
39 |
13.3 |
3.5 |
|
SPY5/16 SPY-8 |
8 |
42.5 |
15.5 |
4.5 |
|
SPY3/8 SPY-10 |
10 |
48 |
38.5 |
4.5 |
|
SPY1/2 SPY-12 |
12 |
54 |
21.5 |
4 |
|
Order code |
|||||
|
SPY |
- |
1/4 |
SPY |
- |
8 |
|
Series code |
|
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
Series code |
|
Port size 4 6 8 10 12 14 16 |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
code |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
DIA |
Φ4 |
Φ6 |
Φ8 |
Φ10 |
Φ12 |
Φ14 |
Φ16 |
|
Specification |
||
|
Media |
Air |
|
|
Proof max pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
|
Material |
PU |
|
