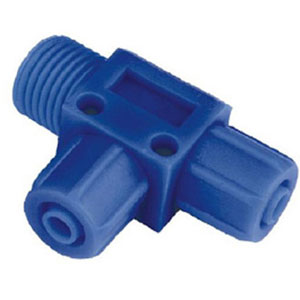

Plastic Fitting BMD
|
Model |
||||
|
BMD4-01 BMD4-02 |
BMD6-01 BMD6-02 BMD6-03 BMD6-04 |
BMD8-01 BMD8-01 BMD8-02 BMD8-03 BMD8-04 |
BMD10-01 BMD10-02 BMD10-03 BMD10-04 |
BMD12-02 BMD12-04 |
|
Order code |
|||
|
BM |
8 |
- |
G02 |
|
Series code |
Tube size 4 6 8 10 12 |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|
|
Media |
Air |
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Ambient &fluid temperature |
0-60oc |
|
Recommended tubes |
Urethane tube, nylon tube |
|
Material |
plastic |
