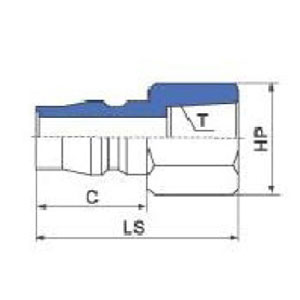

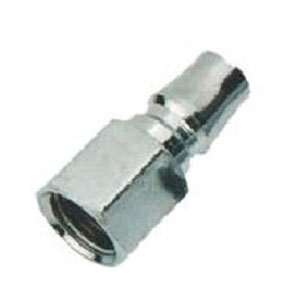

Quick Coupler C PF







Model

HP

C

LP

T

PF10

17H

20

36

1/8PT

PF-20

17H

20

36

1/4PT

PF-30

19H

20

36

3/8PT

PF-40

22H

20

37

1/2PT





How to order

S

M

-

20

S: socket

P: plug

M: male

F: female

H tails

P: coupler



Port size

01:1/8"

02:1/4"

03:/3/8"

04:1/2"







Specification

Media

Air

Proof pressure

1.32Mpa(1.35kgf/cm2)

Pressure range

0-0.9Mpa(0-9.2kgf/cm2)

Ambient &fluid temperature

0-60oc

Recommended tubes

Urethane tube, nylon tube

Material

Zinc alloy
