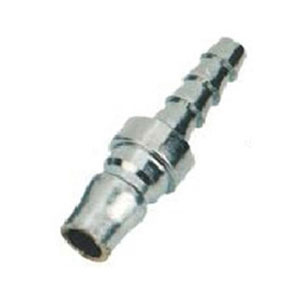

Quick Coupler C PH
|

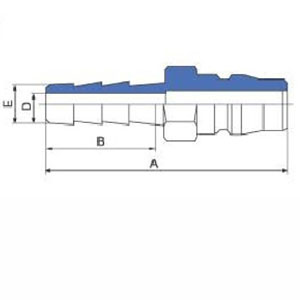

Model |
Adapter |
A |
B |
D |
E |
|
PH-10 |
1/4HOSE |
26 |
24 |
4.9 |
9 |
|
PH-20 |
5/6HOSE |
26 |
24 |
4.9 |
9 |
|
PH-30 |
3/8HOSE |
26 |
24 |
7.2 |
9.8 |
|
PH-40 |
1/2HOSE |
26 |
24 |
7 |
12.6 |
|
How to order |
|||
|
S |
M |
- |
20 |
|
S: socket P: plug |
M: male F: female H: tails P: coupler |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|
|
Media |
Air |
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Ambient &fluid temperature |
0-60oc |
|
Recommended tubes |
Urethane tube, nylon tube |
|
Material |
Zinc alloy |
