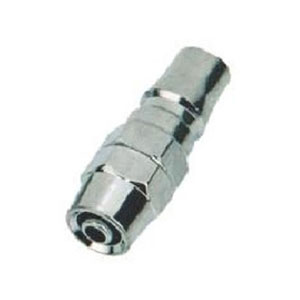

Quick Coupler C PP
|

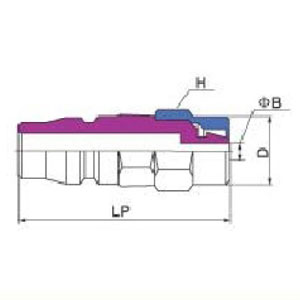

Model |
Adapter |
A |
D |
H |
LP |
|
PP-10 |
1/4HOSE |
2.9 |
13.3 |
14H |
44.1 |
|
PP-20 |
5/6HOSE |
2.9 |
13.3 |
14H |
44.1 |
|
PP-30 |
3/8HOSE |
3 |
13.2 |
14H |
44.2 |
|
PP-40 |
1/2HOSE |
5.2 |
15.8 |
19H |
44.7 |
|
How to order |
|||
|
S |
M |
- |
20 |
|
S: socket P: plug |
M: male F: female H: tails P: coupler |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|
|
Media |
Air |
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Ambient &fluid temperature |
0-60oc |
|
Recommended tubes |
Urethane tube, nylon tube |
|
Material |
Zinc alloy |
