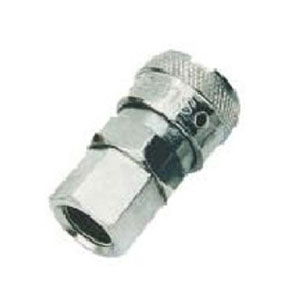

Quick Coupler C SF

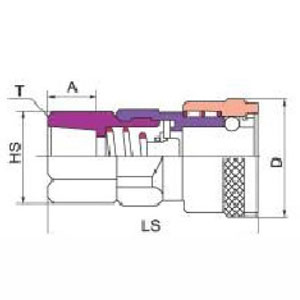

Model |
A |
BS |
D |
HS |
LS |
T |
SF-10 |
9.4 |
6 |
26 |
19H |
50.2 |
1/ |
SF-20 |
9.4 |
6 |
26 |
19H |
50.2 |
1/ |
SF-30 |
15 |
8 |
26 |
19H |
55.8 |
3/ |
SF-40 |
16.5 |
11.5 |
26 |
19H |
57.3 |
1/ |
How to order |
|||
S |
M |
- |
20 |
S: socket P: plug |
M: male F: female H: tails P: coupler |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
Specification |
|
Media |
Air |
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
Ambient &fluid temperature |
0-60oc |
Recommended tubes |
Urethane tube, nylon tube |
Material |
Zinc alloy |
